4 series of superior products,professonal services for global users:01 Intelligent processing equipment for industrial aluminum profiles.02 Intelligent processing equipment for aluminum win-door and curtain wall.03 UPVC doors and windows professional processing equipment.04 Insulating glass professional processing equipment.

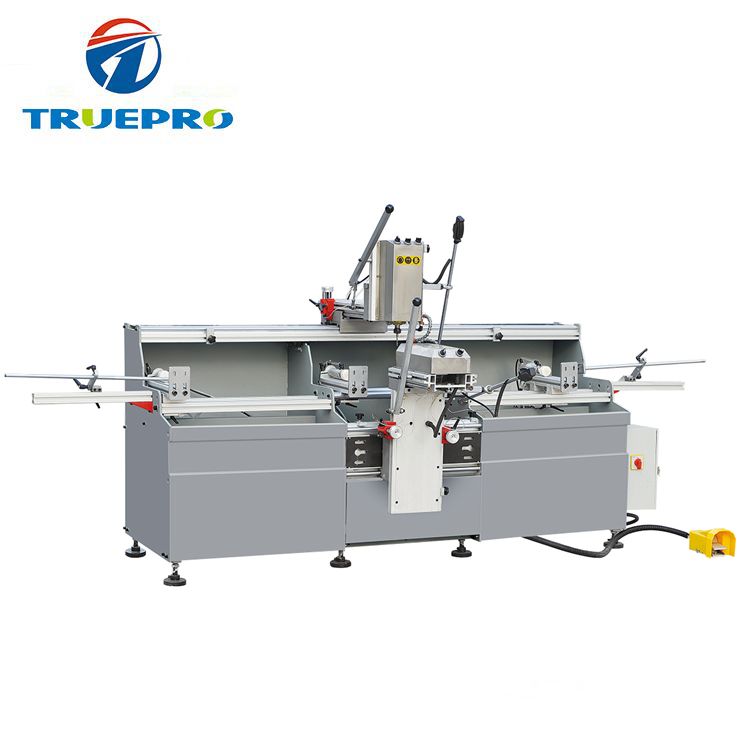

Multi Spindle Copy Router For Aluminum Profile,it has the features of compact structure, nice design and the air pressure drives large horizontal shift range the clamping of the profile.
Aluminum copy router machine adopts the horizontal and vertical milling heads can finish the milling in two directions at one time.
WhatsappMulti Spindle Copy Router For Aluminum Profile
EQUIPMENT FEATURES:
-It is used foe processing all kinds of holes, grooves and water-slots on aluminum and pvc protiles.
-It has the features of compact structure, nice design and the air pressure drives large horizontal shift range the clamping of the profile.
-The easy copy-routing plate replacement, large useful scope, high efficiency and convenient operation achieve the continouns processing and safe operation.
-The horizontal and vertaical milling heads can finish the milling in two directions at one time.
MAIN SPECIFICATION and TECHNICAL PARAMETER:
| Power supply | 380V/50Hz |
| Motor power | 2*2.2KW |
| Motor rotary speed | 0~18000r/min |
| Working air pressure | 0.5~0.8Mpa |
| Milling cutter diameter | Ф5、Ф8mm |
| Copy-routing range | 1900*125mm |
| Profile section | UP：W230×H150 SIDE：W230xH135mm |
| Contour dimension | 3300*1400*1700mm |
| Weight | about 502kg |
APPLICATIONS
Factory Show
Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport....more
