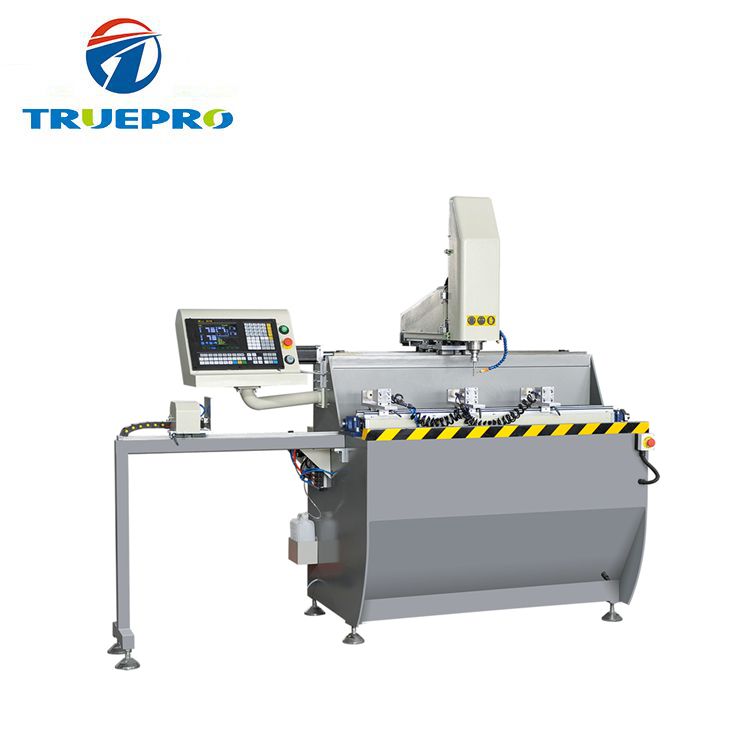

CNC Drilling Milling Machine For Aluminum Profile

  • CNC Drilling Milling Machine For Aluminum Profile Manufacturers, CNC Drilling Milling Machine For Aluminum Profile Factory, Supply CNC Drilling Milling Machine For Aluminum Profile
CNC Drilling Milling Machine For Aluminum Profile
  • TRUEPRO
  • Shandong,China
  • 10Days
  • 1000Sets/Year

4 series of superior products,professonal services for global users:01 Intelligent processing equipment for industrial aluminum profiles.02 Intelligent processing equipment for aluminum win-door and curtain wall.03 UPVC doors and windows professional processing equipment.04 Insulating glass professional processing equipment.

CNC Drilling Milling Machine adopts ISO international Standarded G code programming, easy to operate.
X,Y and Z Axis Adopts high precision ball bearing conveyor, runs stable.

CNC Drilling Milling Machine For Aluminum Profile


EQUIPMENT FEATURES:

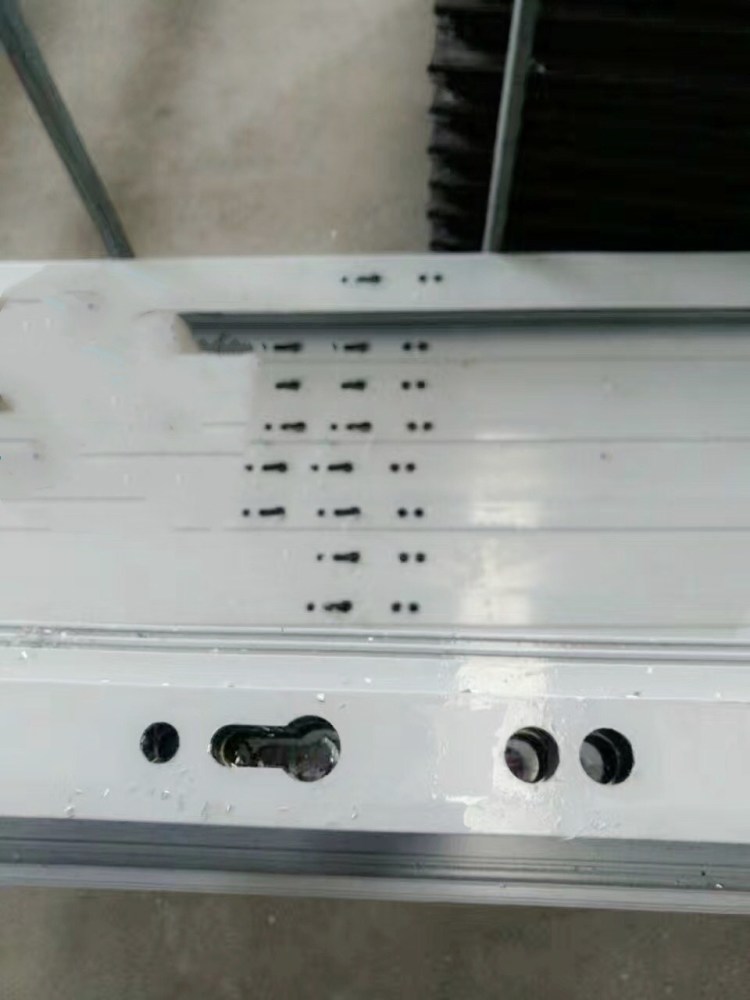

-Used for aluminum profile & PVC profiles's shape holes, round holes etc drilling&milling.

-Adopts standard Triaxial CNC System, easy operation.

-Adopts Electric spindle with high precision, good security, high stability.

-X,Y and Z Axis Adopts high precision ball bearing conveyor, runs stable.

-ISO International Standarded G code programming, easy to operate.

-The working table can automatic 0~90° tilting, one time profiles loading, two sides processing,

which ensure the high precision&high efficiency。

MAIN SPECIFICATION and TECHNICAL PARAMETER:

Power supply380V/50Hz
Input power3KW
Main axis rev18000r/min
Air pressure0.5~0.6MPa
X-axis speed1200mm
Y-axis speed250mm
Z-axis speed250mm
Processing range1000x100x200mm
Handle typeER25×Ф8mm
Dimension2500x1500x1900mm
Weightabout 700kg

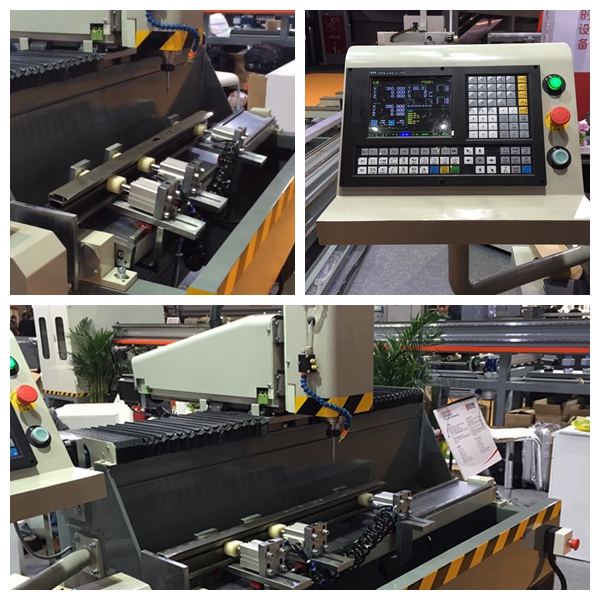

PRODUCT DETAILS


APPLICATION



Factory Show

Factory Show
Team Service
The Production process
Delivery
OUR SERVICE
Responsibility
Social Welfare Activities
Company Style
OFFICE ENVIRONMENT
Exhibition Activities
FENESTRATION BAU CHINA 2017
FAQ
Do you provide equipment operation training?
Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport....more
