- TRUEPRO
- Shandong,China
- 10Days
- 10Sets/month
4 series of superior products,professonal services for global users:01 Intelligent processing equipment for industrial aluminum profiles.02 Intelligent processing equipment for aluminum win-door and curtain wall.03 UPVC doors and windows professional processing equipment.04 Insulating glass professional processing equipment.
High Speed Aluminum Window 4 Axis CNC Processing Center adopts high-quality computer control system, which is used in industry area specially. The system has favor-able user manipulate interface program in graphics mode and processing interface. This processing interface can show related dates directly.
4 axis processing center it adopts high-quality servo-motor, roller linear guide pair to insure the machine runs with high precision.
The cutter storage supply 12 cutter positions, the cutter can change quickly and automatically.

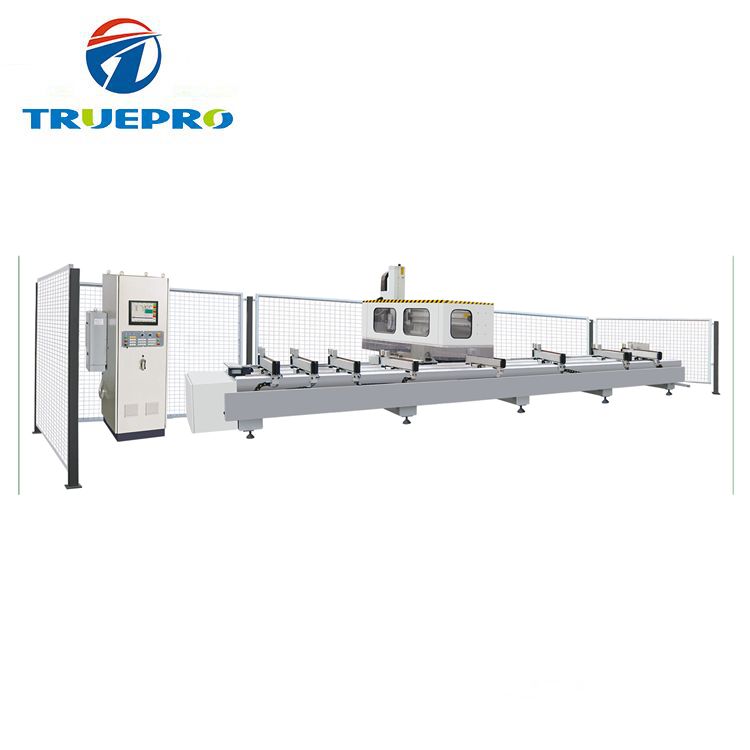

WhatsappHigh Speed Aluminum Window 4 Axis CNC Processing Center
EQUIPMENT FEATURES:
-This machine is designed for processing launder, taping,milling, and mounting hole, locking hole and other slots for diversified curtain walls and aluminum doors and windows.
-It adopts high-speed electric principal axis, which is imported from Italy. It is extremely efficient and can swingin ±90°.
-It adopts high-quality computer control system, which is used in industry area specially. The system has favor-able user manipulate interface program in graphics mode and processing interface. This processing interface can show related dates directly.
-It adopts high-quality servo-motor, roller linear guide pair to insure the machine runs with high precision.
-The cutter storage supply 12 cutter positions, the cutter can change quickly and automatically.
-With half-close safeguard device to insure the personal safety of the operator.
-The position of clamping device can put freely.
MAIN SPECIFICATION and TECHNICAL PARAMETER:
| X-way range | 7000mm |
| Y-way range | 1400mm |
| Z-way range | 600mm |
| X-way speed | 0~60mm |
| Y-way speed | 0~30mm |
| Z-way speed | 0~20mm |
| Main shaft rev./powe | 0~18000rmp/7.5KW |
| Gyrating range | 90° ~0° ~+90° |
| Cutter max length | 165mm |
| Saw blade diamete | Ф80~Ф150mm |
| Air pressure | 0.5~0.8Mpa |
| Power supply | 380V/50Hz |
| Total power | 13KW |
| Clamp | 8 |
| Lubricating & cooling | Auto lubricating & spray cooling |
| Work area(W×H×L) | 650×200×7000mm |
| Overall Dimension(W×H×L） | 11300×2350×2550mm |
| Weight | about 4500kg |
