Aluminum Window Hole And Grooves CNC Drilling Milling Machine
  • TRUEPRO
  • Shandong,China
  • 10Days
  • 200Sets/Year

Our company is a manufacturer of window machine,insulating glass processing machine and curtain wall machine with well-equipped testing equipment and strong technical force

Aluminum Window Hole And Grooves CNC Drilling Milling Machine adopted ball bearing movement device, high precision guide liner rack and pinion, servo motor, ensure the stable movement with high precision position and operation.

Aluminum window drilling machine adopted imported high speed main axis motor,stable rotation, low noise, strong milling ability.

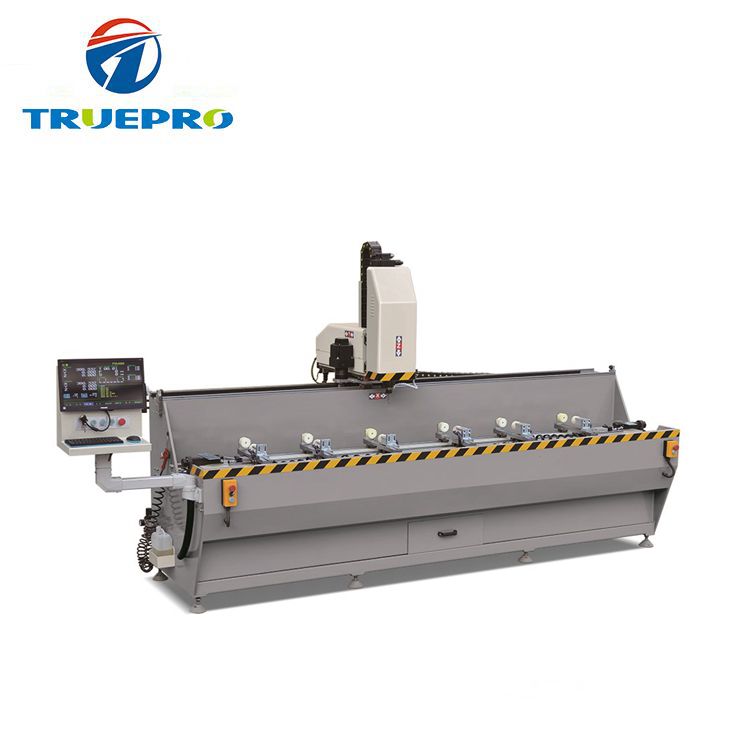

Aluminum Window Hole And Grooves CNC Drilling Milling Machine

Aluminum window drilling machine

EQUIPMENT FEATURES:

-Milling aluminum profile at different size of holes and grooves.

-Adopted ball bearing movement device, high precision guide liner rack and pinion, servo motor,

ensure the stable movement with high precision position and operation.

-Adopted imported high speed main axis motor,stable rotation, low noise, strong milling ability.

-Intelligent integrated CNC system, concision and vivid human and machine interface, easy operation.

MAIN SPECIFICATION and TECHNICAL PARAMETER:


X-way journey (X-axis) 3000mm
Y-way journey (Y-axis)300mm
Z-way journey (Z-axis)300mm
X-axis speed0~60m/min
Y-axis speed 0~15m/min
Z-axis speed 0~15m/min
Main axis rev./powe18000rmp/min
Worktable work position°- 90°、0°、+90°
Clamp ER25×Ф8mm
Air supply0.5~0.8MPa
Power supply380V/50Hz
Total power
7KW
Quantity of clamp6
Clamp station/journey2/50mm
Processing size(W*H*L)160x160x3200mm
Overall dimension(L*W*H)
4400x1500x1800mm
Weightabout 1200kg



PRODUCT DETAILS

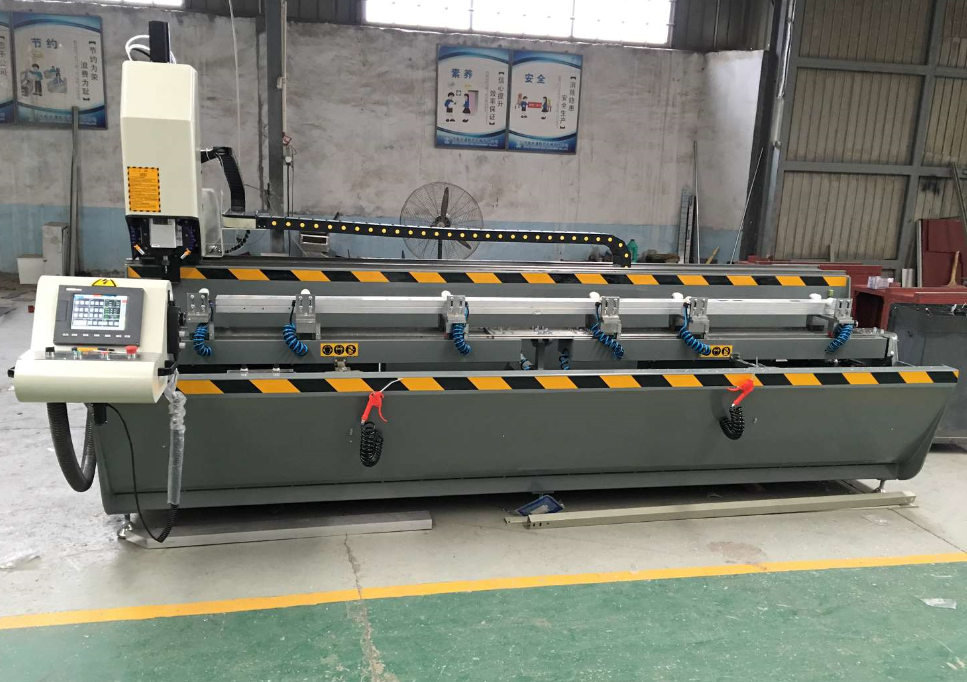

window hole grooves milling machine
