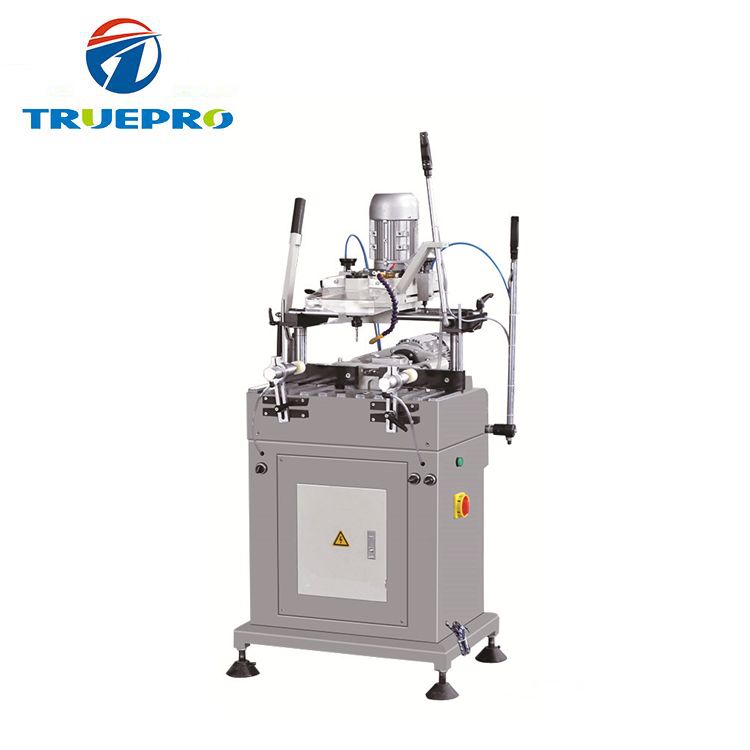

Aluminum PVC Window Single Head Copy Router Milling Machine
  • TRUEPRO
  • Shandong,China
  • 10Days
  • 50sets/month

4 series of superior products,professonal services for global users:01 Intelligent processing equipment for industrial aluminum profiles.02 Intelligent processing equipment for aluminum win-door and curtain wall.03 UPVC doors and windows professional processing equipment.04 Insulating glass professional processing equipment.

Aluminum PVC Window Single Head Copy Router Milling Machine formed by three-hole drill part and copy milling part.

Movement of three drill head increases the guide pin under the guidance, guarantee three holes on the underside of the parallel.

Profile modeling by profile mound plate and auxiliary positioning for modeling.

Aluminum PVC Window Single Head Copy Router Milling Machine


EQUIPMENT FEATURES:

-Milling all kinds of lock holes.

-Formed by three-hole drill part and copy milling part.

-Movement of three drill head increases the guide pin under the guidance, guarantee three holes on the underside of the parallel.

-Three drill rear layout, easy operation, accord with human body engineering principle.

-Automatic feeding of three drill gas-liquid damping, reduce the labor intensity of the workers.

-Profile modeling by profiling mound plate and auxiliary positioning for modeling.

MAIN SPECIFICATION and TECHNICAL PARAMETER:

Power supply380V/50Hz
Input Power2.6KW
Operation Air Pressure0.6~0.8MPa
Diameter of the three-hole drilling headФ10mm
Centers distance of the three-hole hole drilling head

21.5mm

Cutter DiameterФ5、Ф8mm
Copy-routing range235*100mm
Overall Dimension870x1200x1500mm
Weightabout 220kg

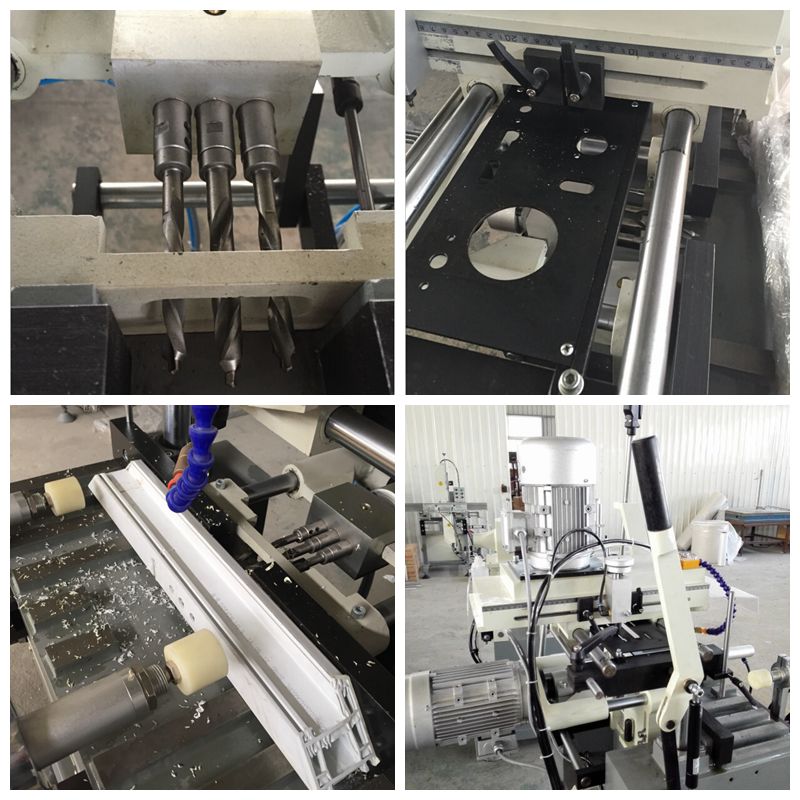

PRODUCT DETAILS

copy-routing machine1.jpg
