Our company is a manufacturer of window machine,insulating glass processing machine and curtain wall machine with well-equipped testing equipment and strong technical force.
Small end milling machine super precision main shaft insures accu-rate and steady processing.
Aluminum door machine adjustable processing angle within 35° ~ 90°.
The cutter in mounted on high precision spindle, the motor running accuracy will not affect the tool working accuracy.

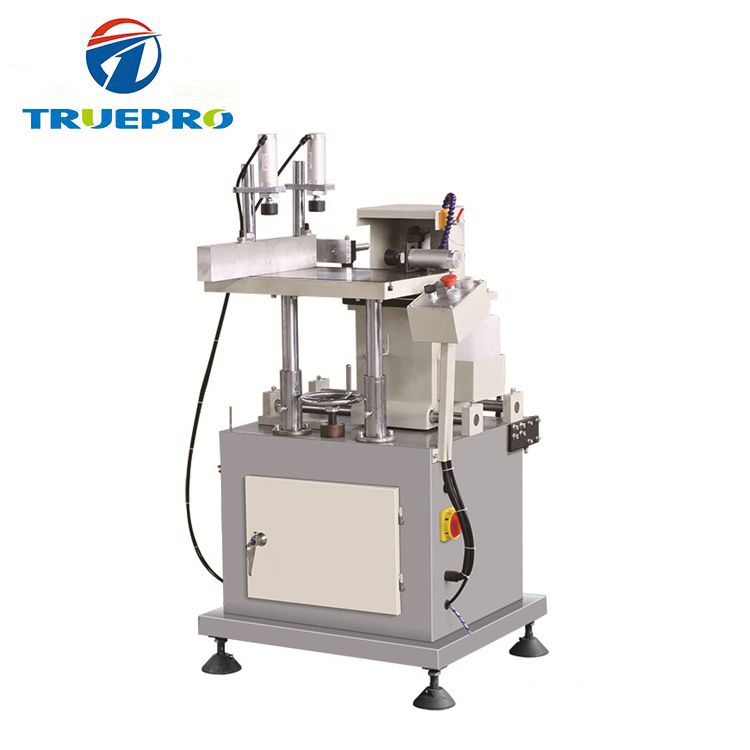

WhatsappSmall End Milling Machine For Aluminum Window And Door
![4{[LV7)QV{$DZA179C]4I5I_副本.jpg](../../uploadImages/1419-201907081529229371.jpg "4{[LV7)QV{$DZA179C]4I5I_副本.jpg")
EQUIPMENT FEATRUES:
-Used for processing aluminum profile end,step face and slot etc.
-Super precision main shaft insures accu-rate and steady processing.
-Adjustable processing angle within 35° ~ 90°.
-Convenient tool setting is due to adjustable worktable.
-The cutter is mounted on high precision spindle, the motor running accuracy will not affect the tool working accuracy.
-Cutter feeding adopts linear bearing motion pair so that the working perfor mance in stable.
MAIN SPECIFICATION and TECHNICAL PARAMETER:
| Power supply | 380V/50Hz |
| Total power | 2.2KW |
| Motor rev | 2800r/min |
| Air pressure | 0.6~0.8MPa |
| Saw blade specification | (Ф200~Ф110)×Ф32mm |
| Open tenon | 110mm |
| Location turning angle | 35° ~ 90° |
| Feeding journey of worktable | 0~320mmm |
| Contour dimension | 850*740*1280mm |
| Weight | about 180kg |
PRODUCT DETAILS

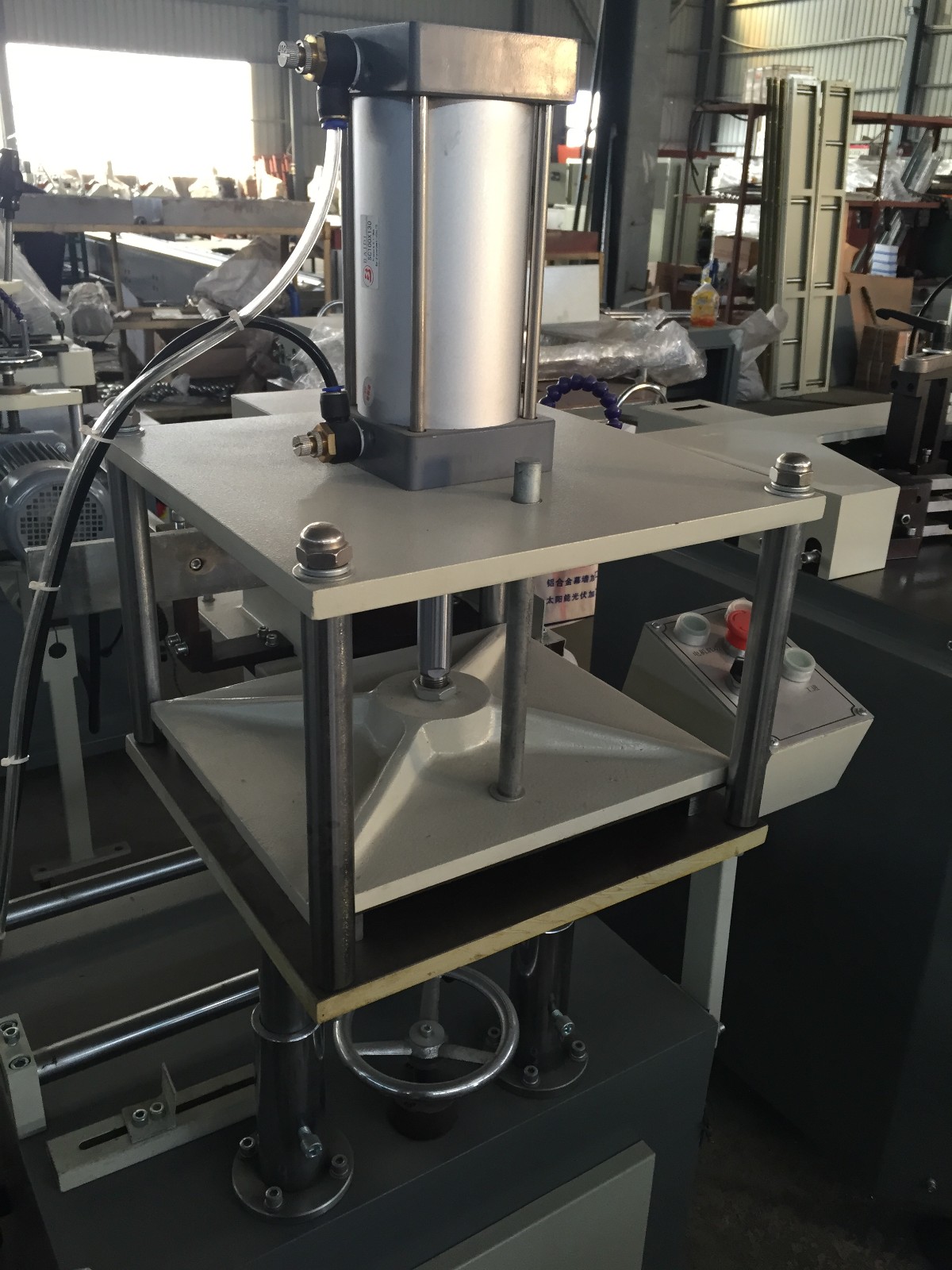

Cylinder

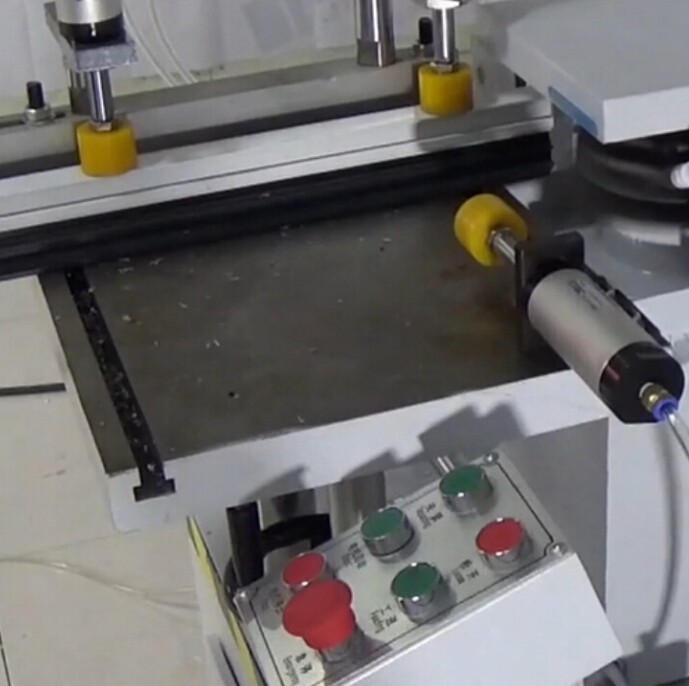

Hold down fitting
Factory Show
Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport....more
