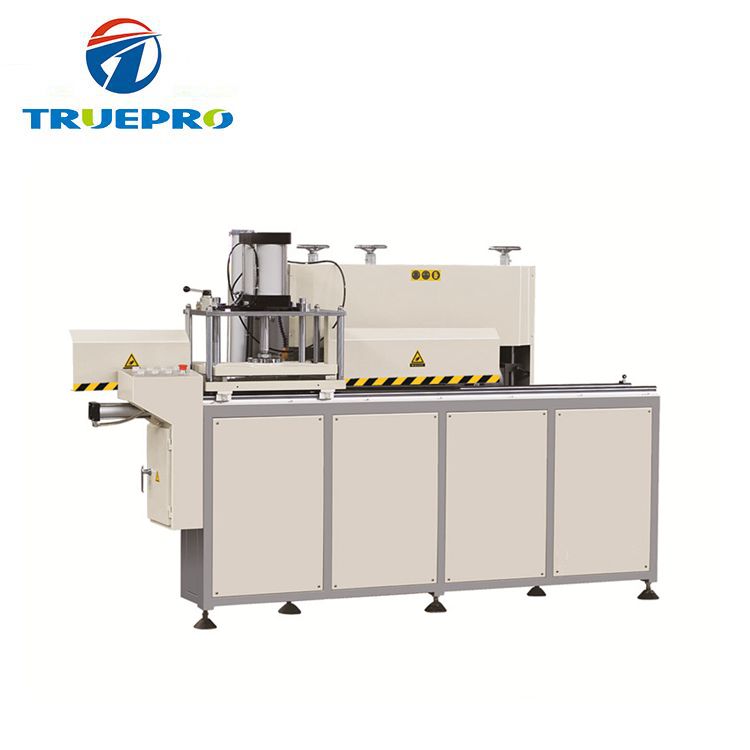

Aluminum Window Curtain Wall End Milling Making Machine

  • Aluminum Window Curtain Wall End Milling Making Machine Manufacturers, Aluminum Window Curtain Wall End Milling Making Machine Factory, Supply Aluminum Window Curtain Wall End Milling Making Machine
Aluminum Window Curtain Wall End Milling Making Machine
  • TRUEPRO
  • Shandong,China
  • 10Days
  • 50Sets/Year

Our company is a manufacturer of window machine,insulating glass processing machine and curtain wall machine with well-equipped testing equipment and strong technical force.

Aluminum window curtain wall end milling making machine 's large diameter tools with high and stable milling speed for guarantee the working quality.

Aluminum window making machine universal milling blades can be adjusted in up/down, left/right directions to fit for different processing requriement and ensure the efficient working.

Aluminum Window Curtain Wall End Milling Making Machine


EQUIPMENT FEATURES:

-Used for milling the aluminum mullion/transom and reinforced mullion.

-Large milling capacity, multi-pieces profile milling in one cycle.

-Universal milling blades can be adjusted in up/down, left/right directions to fit for different processing requriement and ensure the efficient working.

-Suitable for the reinforced mullion in one cutting/milling cycle.

-Large diameter tools with high and stable milling speed for guarantee the working quality.

MAIN SPECIFICATION and TECHNICAL PARAMETER:


Power supply380V/50Hz
Total power8.8KW
Motor rev2800r/min
Air pressure0.5~0.8MPa
Diameter of main shaftФ32mm
Diameter of milling cutter Ф250mm
Diameter of bladeФ305mm
Workable journey0~1560mm
Worktable dimension530*320mm
Motor adjustable journey
0~85mm
Max processing tenoningsize
40mm
Contour dimension3000*970*1670mm
Cutting surface roughness 12.5μm
Weightabout 650kg

MACHINE DETAILS:

Aluminum profile end-milling machine1.jpg

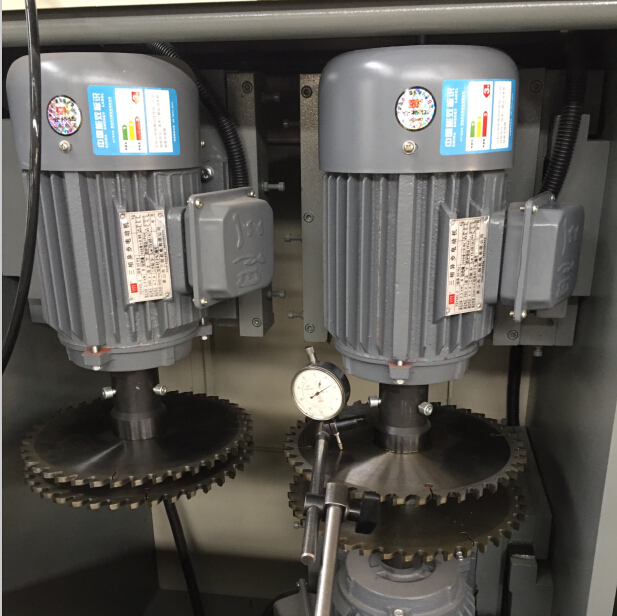

Electric motor and saws

Aluminum end milling machine_4 knives4.jpg

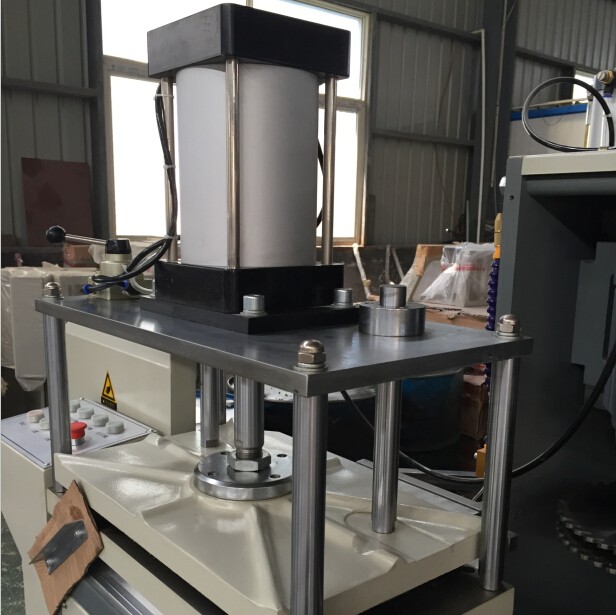

Cylinder
