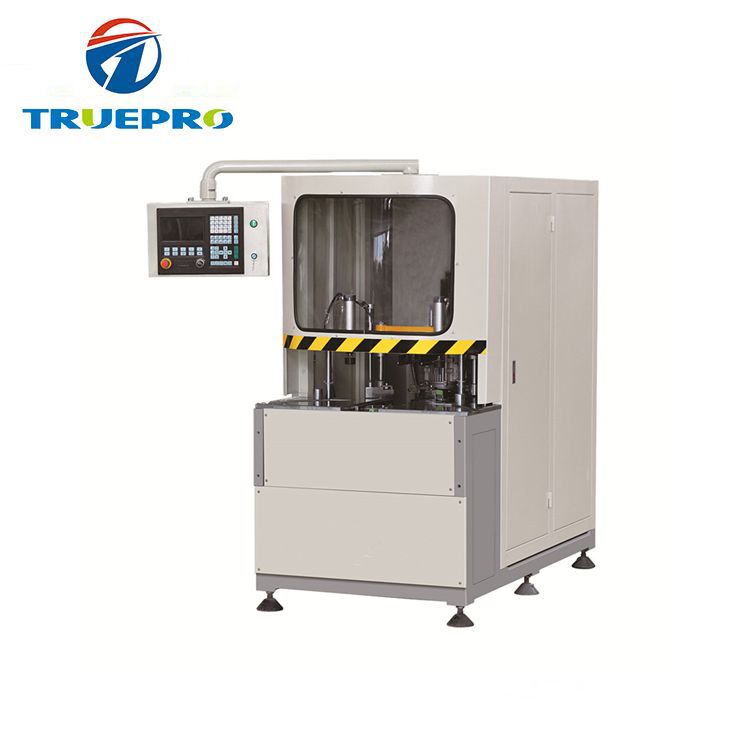

PVC Window CNC Corner Seam Cleaning Machine

PVC Window CNC Corner Seam Cleaning Machine
- TRUEPRO
- Shandong,China
- 10Days
- 1000Sets/Year
4 series of superior products,professonal services for global users:01 Intelligent processing equipment for industrial aluminum profiles.02 Intelligent processing equipment for aluminum win-door and curtain wall.03 UPVC doors and windows professional processing equipment.04 Insulating glass professional processing equipment.
PVC Window CNC Corner Seam Cleaning Machine High processing precision due to size error compensation function.
Can store many programs for various profile processing.
Doable-Axis control system.
PVC Window CNC Corner Seam Cleaning Machine
EQUIPMENT FEATURES:
-For cleaning PVC profile welding seam
-Doable-Axis control system.
-High processing precision due to size error compensation function.
-Imported servo-drive system, computer control system, and so on, ensure
reliable performance and long using life
-Can store many programs for various profile processing.
-Can clean outside vertical surface, up/bottom welding seam, internal bevel
section, seam in the track of the sliding profile, rubber seam groove part and so on.
MAIN SPECIFICATION and TECHNICAL PARAMETER:
Input Voltage | 380V/50Hz |
Input Power | 1.7KW |
Milling Cutter Rotary speed | 2800r/min |
Air pressure | 0.5~0.8MPa |
Air consumption | 60L/min |
Profile Height | 30~120mm |
Profile Width | 20~120mm |
Overall Dimension | 2000x1820x1500mm |
Weight | 700kg |
PRODUCT DETAILS

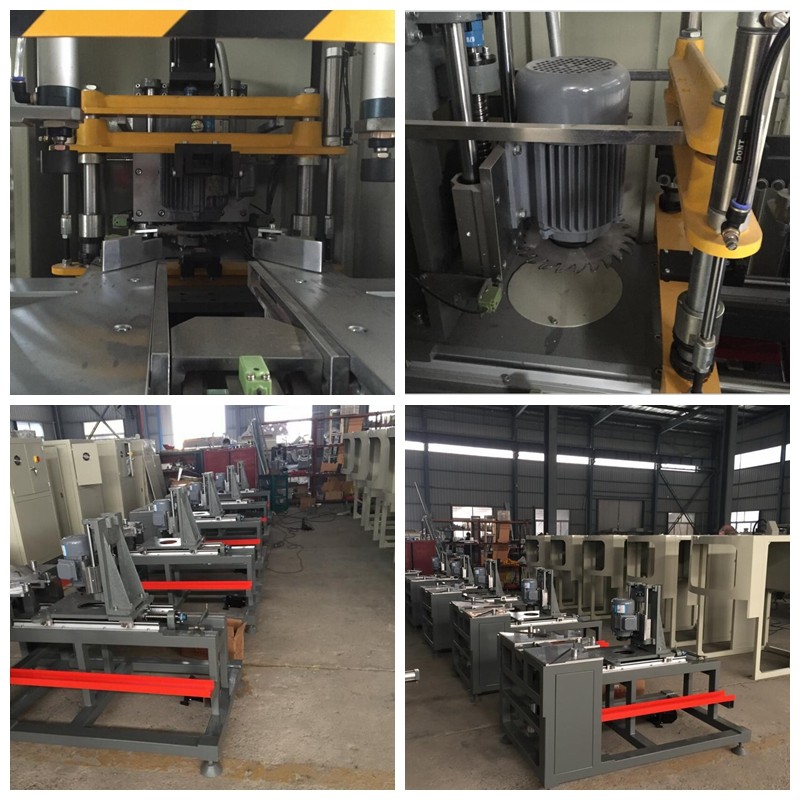

Factory Show
Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport....more
