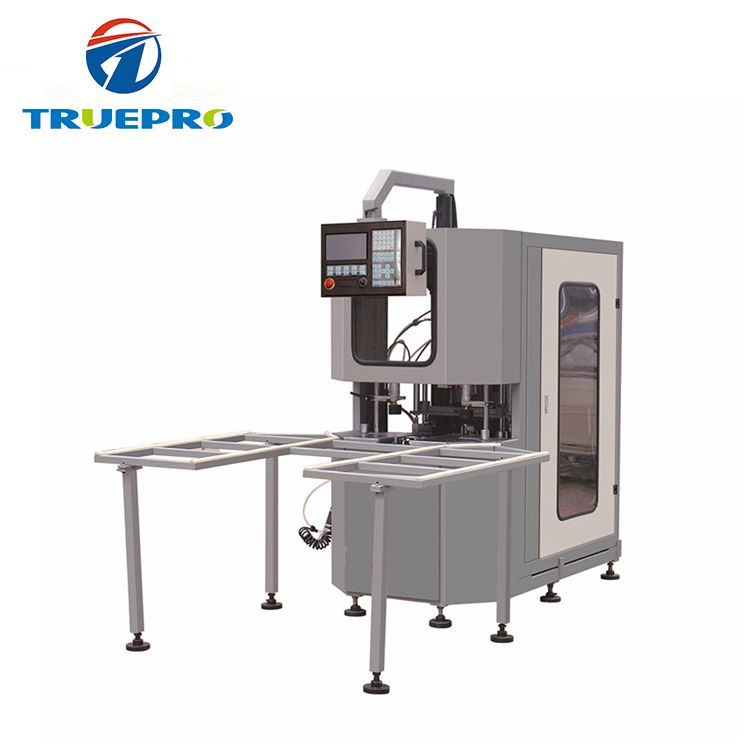

CNC Five Cutters Corner Cleaning Machine For PVC Window Door

  • CNC Five Cutters Corner Cleaning Machine For PVC Window Door Manufacturers, CNC Five Cutters Corner Cleaning Machine For PVC Window Door Factory, Supply CNC Five Cutters Corner Cleaning Machine For PVC Window Door
CNC Five Cutters Corner Cleaning Machine For PVC Window Door
  • TRUEPRO
  • Shandong,China
  • 10Days
  • 1000Sets/Year

4 series of superior products,professonal services for global users:01 Intelligent processing equipment for industrial aluminum profiles.02 Intelligent processing equipment for aluminum win-door and curtain wall.03 UPVC doors and windows professional processing equipment.04 Insulating glass professional processing equipment.

CNC Five Cutters Corner Cleaning Machine For PVC Window Door High processing precision due to size error compensation function.

Imported servo-drive system, computer control system, solenoid valve, air source disposer and so on ensured reliable performance and long using life.

Two axis computer control system.

CNC Five Cutters Corner Cleaning Machine For PVC Window Door


EQUIPMENT FEATURES:

-High processing precision due to size error compensation function.

-Imported servo-drive system, computer control system, solenoid valve, air source disposer and so on ensured reliable performance and long using life.

-Two axis computer control system.

-Can store many programs for various profile processing.

-Can clean multi-shaped welding seams.

-Can clean outside vertical surface, up/bottom welding seam and seal rubber groove

part.

MAIN SPECIFICATION and TECHNICAL PARAMETER:

Input  Voltage380V/50Hz
Input Power1.4KW
Milling Cutter Rotary speed2800r/min
Air pressure0.5~0.8MPa
Air consumption80L/min
Profile Height30~120mm
Profile Width20~120mm
Overall Dimension1570x2670x2070mm
Weight750kg

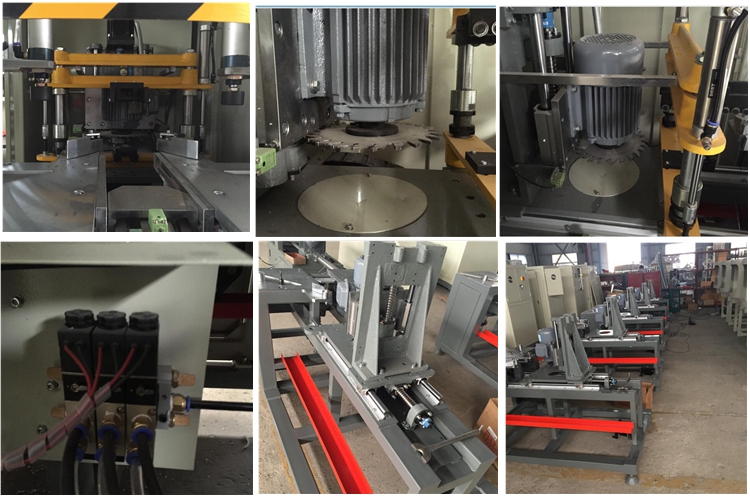

PRODUCT DETALIS



Factory Show

Factory Show
Team Service
The Production process
Delivery
OUR SERVICE
Responsibility
Social Welfare Activities
Company Style
OFFICE ENVIRONMENT
Exhibition Activities
FENESTRATION BAU CHINA 2017
FAQ
Do you provide equipment operation training?
Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport....more
