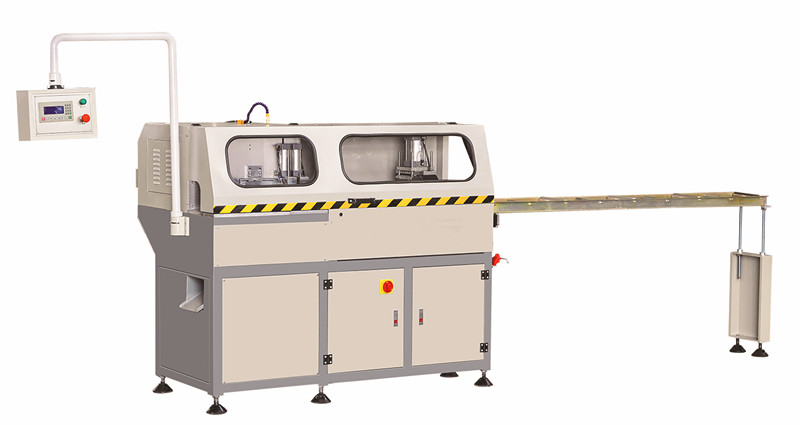

This aluminum door window machine is used for cutting aluminum corner connector profile and curtain wall profile.Linear bearing motion pair give less resistance force and ensured high processing accuracy.
Our company is a manufacturer of window machine,insulating glass processing machine and curtain wall machine with well-equipped testing equipment and strong technical force.
WhatsappHot Sale digital corner connector Saw of aluminum profile
EQUIPMENT FEATURES

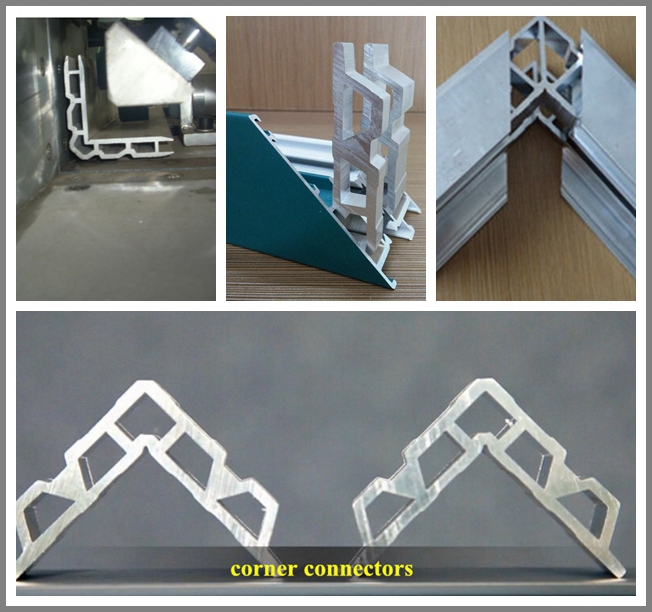

- Used for aluminum corner connector cutting.
- Imported carbide saw blade is of accurate processing and high efficiency.
- High-power motor makes the cutting easily.
- Linear bearing motion pair give less resistance force and ensured high processing accuracy.

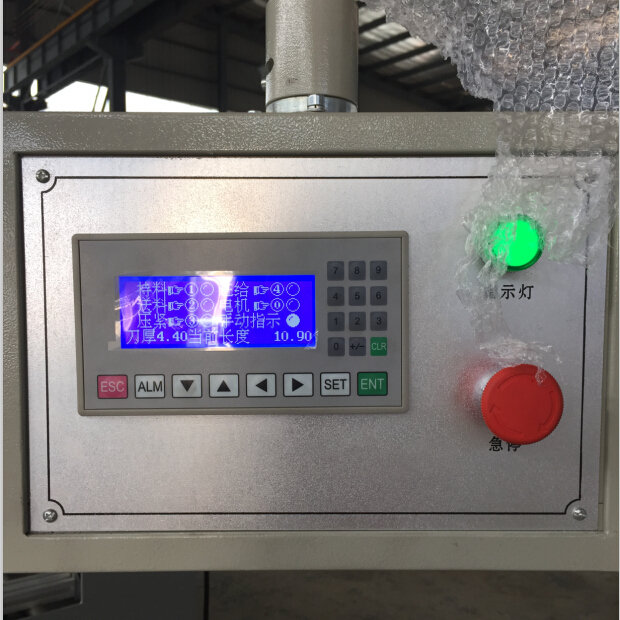

- The PLC control and auto-feeding system with high efficiency is suitable for large volume production.
TECHNICAL PARAMETER
| Power supply | 380V/50Hz |
| Cutting motor power | 3kW |
| Motor rotary speed | 2800/min |
| Air pressure | 0.6~0.8MPa |
| Auto-feeding length | 5~580mm |
| Blade feeding speed | 0 ~3m/min |
| Blade specification | Ф500×Ф30×4.4 Z=96 |
| Cutting W x H | 140×140mm |
| Overall dimension | 5670×1770×1840mm |
| Weight | abou 800kg |
PRODUCT DETAILS
Factory Show
Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport....more
