High Efficiency Aluminum Window Corner Connector Cutting Saw Machine

  • High Efficiency Aluminum Window Corner Connector Cutting Saw Machine Manufacturers, High Efficiency Aluminum Window Corner Connector Cutting Saw Machine Factory, Supply High Efficiency Aluminum Window Corner Connector Cutting Saw Machine
High Efficiency Aluminum Window Corner Connector Cutting Saw Machine
  • TRUEPRO
  • Shandong,China
  • 7days
  • 50sets/month

Our company is a manufacturer of window machine,insulating glass processing machine and curtain wall machine with well-equipped testing equipment and strong technical force.

Use carbide saw blade for Cutting tools, is of high cutting speed, easy operation safe and reliable.

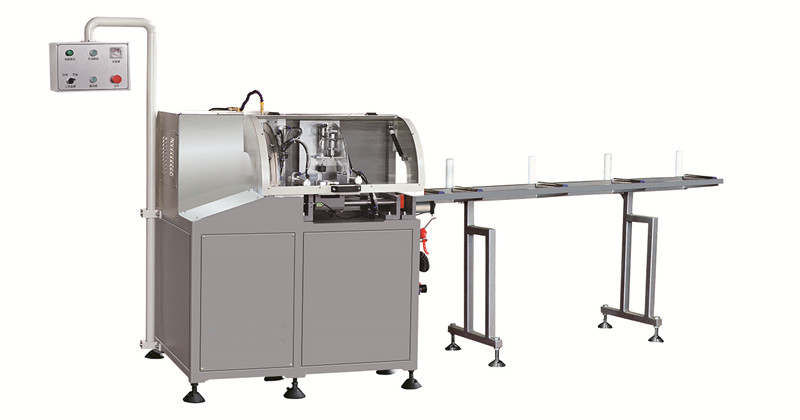

High Efficiency Aluminum Window Corner Connector Cutting Saw Machine



EQUIPMENT FEATURES

- This machine is mainly used for corner connector of aluminum profile and plastic profile cutting.

- The Angle adjustable voltage technology, quick adjustment, high efficiency.

- Feed movement adopts linear motion bearings, small resistance, high machining accuracy.

- Use carbide saw blade for Cutting tools, is of high cutting speed, easy operation,safe and reliable.

- Make good use of the material during cutting.

- This machine is suitable for massive cutting of angle connectors.

- Motor phase sequence protector is installed in the motor system, To improve the security of the system.


TECHNICAL PARAMETER

Power supply : 380V 50H 380V 50H
Cutting motor power2.2kW
Motor rotary speed 2800r/min
Air pressure 0.5~0.8MPa
Auto-feeding length 3~380mm
Blade feeding speed  0~3m/min
Blade specificationФ500×Ф30×4.4 Z=96
Cutting W x H 145×145mm
Overall dimension6000×1770×1840mm
Weightabout 600kg

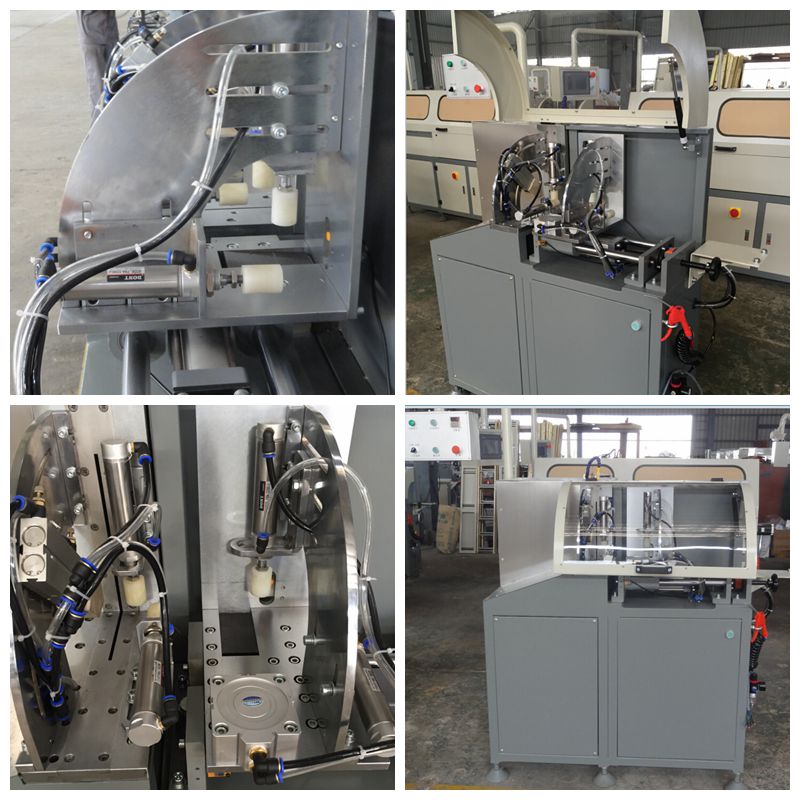

PRODUCT DETAILS




Factory Show

Factory Show
Team Service
The Production process
Delivery
OUR SERVICE
Responsibility
Social Welfare Activities
Company Style
OFFICE ENVIRONMENT
Exhibition Activities
FENESTRATION BAU CHINA 2017
FAQ
Do you provide equipment operation training?
Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport....more
