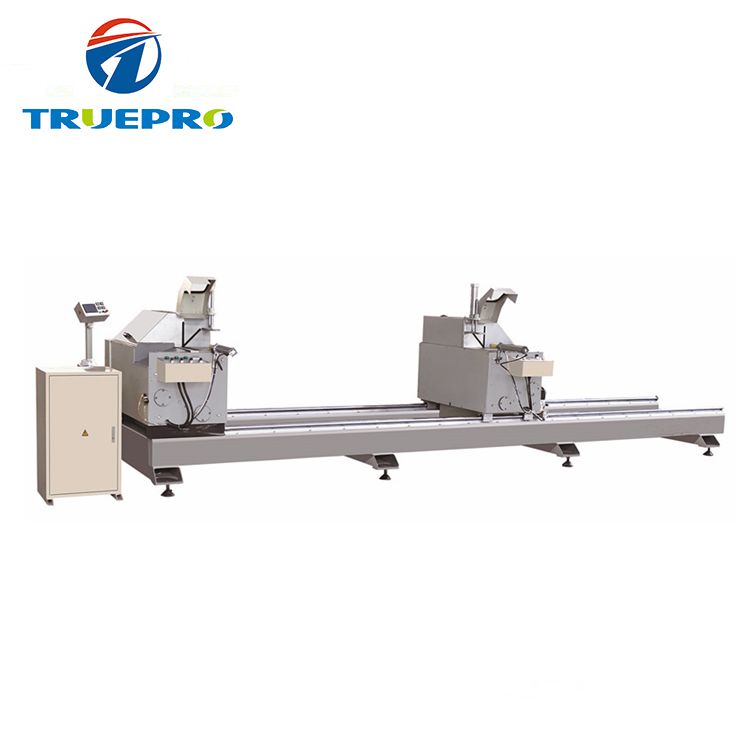

High Efficiency PVC Profile Double Head Precision Cutting Saw
- TRUEPRO
- Shandong,China
- 10Days
- 1000Sets/Year
Our company is a manufacturer of window machine,insulating glass processing machine and curtain wall machine with well-equipped testing equipment and strong technical force.
High Efficiency PVC Profile Double Head Precision Cutting Saw One time four pieces of profiles cutting available(height of the profile should be less than 60mm).
Machine guide and head feeding adopted linear bearing system.
Digital display the profile cutting length and quantity as option.
WhatsappHigh Efficiency PVC Profile Double Head Precision Cutting Saw
EQUIPMENT FEATURES:
Automatic45~90 angle change.
One time four pieces of profiles cutting available(height of the profile should be
less than 60mm).
Machine guide and head feeding adopted linear bearing system.
Automatic machine head brake.
Reasonable structure and high processing precision
Digital display the profile cutting length and quantity as option
MAIN SPECIFICATION and TECHNICAL PARAMETER:
| Air preaaure | 0.5~0.8MPa |
| Air consumption | 30L/min |
| Input Voltage | 380V/50Hz |
| Input Power | 3.0KW |
| Spindle rotary speed | 3300r/min |
| Cutting height | 90x105mm |
| Cutting width | 260mm |
| Cutting length | 430~4200mm |
| Overall Dimension | 6000x1400x1400mm |
| Weight | 1500kg |
Factory Show
Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport....more
