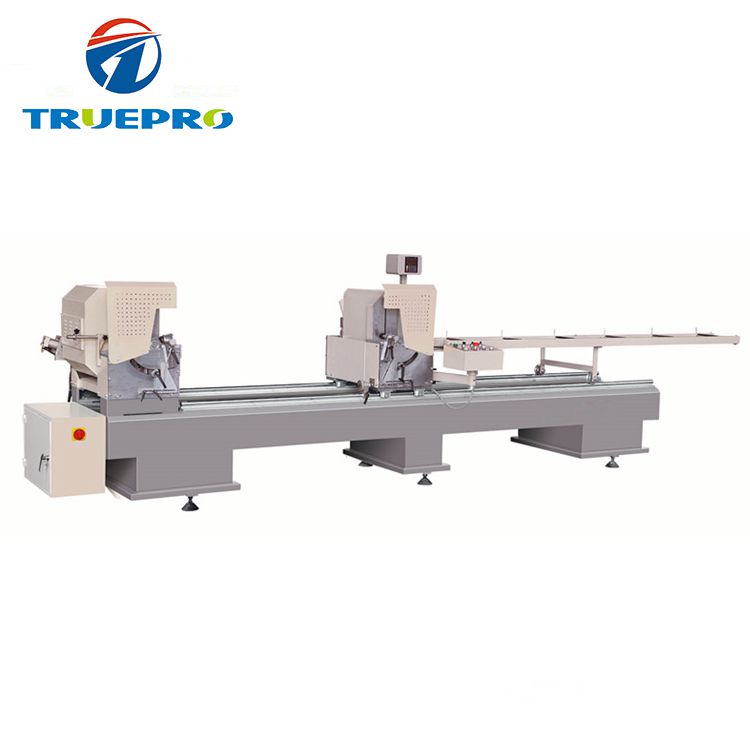

Double Head Cutting Machine For PVC And Aluminum Window Profile

  • Double Head Cutting Machine For PVC And Aluminum Window Profile Manufacturers, Double Head Cutting Machine For PVC And Aluminum Window Profile Factory, Supply Double Head Cutting Machine For PVC And Aluminum Window Profile
Double Head Cutting Machine For PVC And Aluminum Window Profile
  • TRUEPRO
  • Shandong,China
  • 10Days
  • 100Sets/Year

4 series of superior products,professonal services for global users:01 Intelligent processing equipment for industrial aluminum profiles.02 Intelligent processing equipment for aluminum win-door and curtain wall.03 UPVC doors and windows professional processing equipment.04 Insulating glass professional processing equipment.

Double Head Cutting Machine High processing quality due to special high precision main shaft

Machine guide adopted linear bearing and hydro-pneumatic actuator to ensure feeding smoothly.
Cutting mullion precision and convenience due to mullion positioner.

Optional part: be printer, print material marks on real time.

Double Head Cutting Machine For PVC And Aluminum Window Profile


EQUIPMENT FEATURES:

- Machine guide adopted linear bearing system, ensure high cutting precision and

long using life

- High processing quality due to special high precision main shaft.

- Machine guide adopted linear bearing and hydro-pneumatic actuator to ensure

feeding smoothly

- Cutting mullion precision and convenience due to mullion positioner.

- Cutting length is controlled by computer control system to locate fast and precisely.

- Optional part: be printer, print material marks on real time.

 - Cutting angle changed automatically, variable angle can be cut.

- Below 60mm width profile could be cut two in one time, high productive efficiency.

- Safety protection systems available.

MAIN SPECIFICATION and TECHNICAL PARAMETER:

Air pressure0.5~0.8MPa
Air consumption50L/min
Input Voltage380V/50Hz
Input Power5.25/2x1.5KW
Spindle rotary speed2800r/min
Cutting height120mm
Cutting width120mm
Cutting length290~3600mm
Overall Dimension6000x1300x1650mm
Weight1200/1000kg

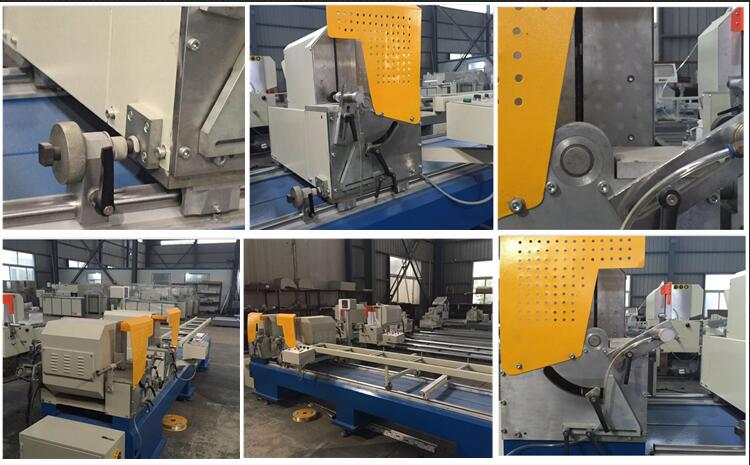

PRODUCT DETAILS

06A cutting machine-8.jpg


Factory Show

Factory Show
Team Service
The Production process
Delivery
OUR SERVICE
Responsibility
Social Welfare Activities
Company Style
OFFICE ENVIRONMENT
Exhibition Activities
FENESTRATION BAU CHINA 2017
FAQ
Do you provide equipment operation training?
Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport....more
