- TRUEPRO
- Shandong,China
- 15days
- 20sets/month
We have all kinds of doors and Windows processing machinery,and competitive in quality products, good price and good service. Welcome to get quality aluminum profile cutting center for sale here.
Mechanical arm, high precision gear and rack make feeding accuracy.Siemens control system makes machine working steady and reliable.

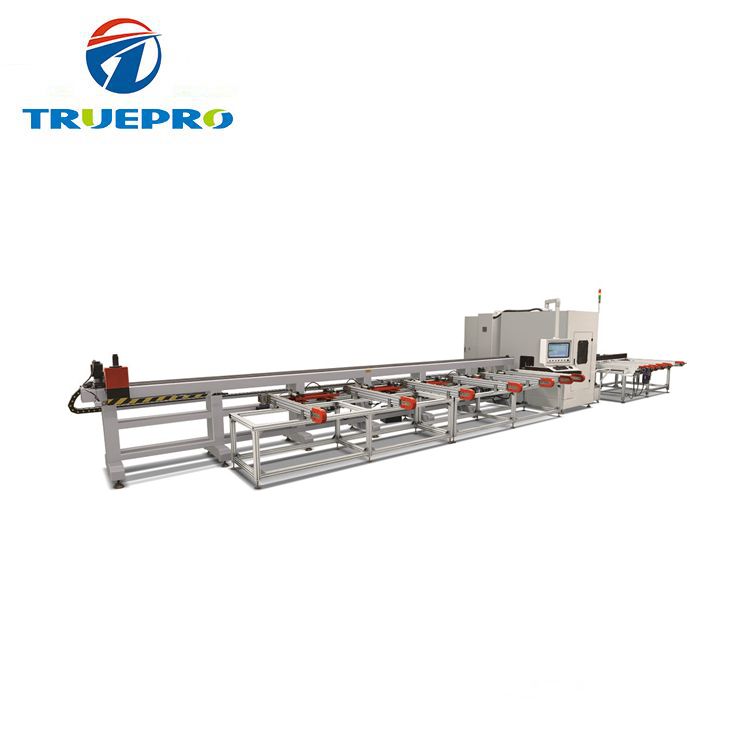

WhatsappFull Automatic CNC Aluminum Window Profile Cutting Cenrer
EQUIPMENT FEATURES
- Worktable auto feeding and clamping continuous.
- High precision linear guide-way.
- Mechanical arm, high precision gear and rack make feeding accuracy.
- Blade connected directly with imported motor. Cut smooth and steady and high precision.
- Cutting motion is servo controlled. Cutting efficiency and quality are much better.
- Siemens control system makes machine working steady and reliable.
- ±45°or 90°cutting is finished continuous and efficiency.
- Totally closed design, Operator protect.
- Option: bar code printer for E-works.
TECHNICAL PARAMETER
| Cutting motor power | 3*2.2Kw |
| Feeding motor power | 0.75Kw |
| Dischange motor power | 0.75Kw |
| Input power | 220V/380V/415V 50Hz |
| Operation aie pressure | 0.5-0.8MPa |
| Blade specification | Φ500*Φ30*4.4*120T |
| Cutting length | 30-120mm |
| Cutting width | 30-120mm |
| Raw materials | 400-5800mm |
| Cutting angle deviation | ±5’ |
| Length deviation | ±0.2mm |
| Repeat locating length deviation | ±0.05mm |
| Overall dimension | 16000*2600*2000mm |
| Weight | about 4000Kg |

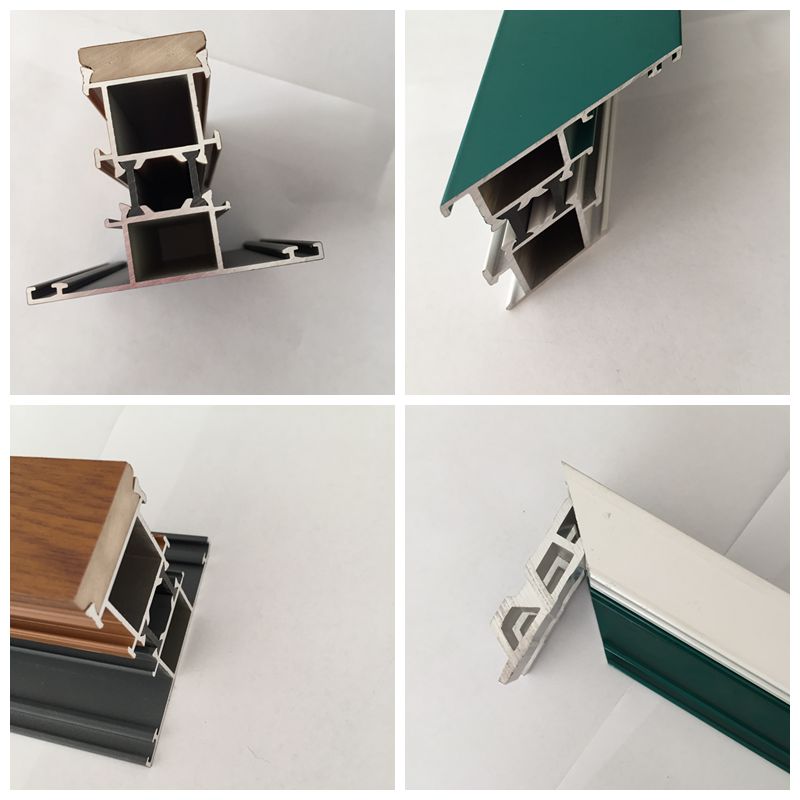

APPLICATIONS
Factory Show
Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport....more
