Our company is a manufacturer of window machine,insulating glass processing machine and curtain wall
machine with well-equipped testing equipment and strong technical force.

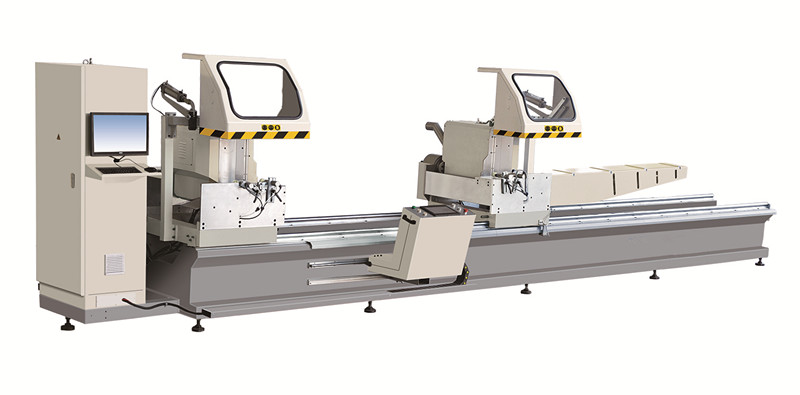

CNC Variable Angle Aluminum Profile Double Head Precision Cutting Saw
The cutting angle is automatic adjustable through the imported servo motor between 45° to 157.5°.
Several profile processing dimensions can be directly input,the cutting length can be changed without returning the reference point.
WhatsappCNC Variable Angle Aluminum Profile Double Head Precision Cutting Saw
EQUIPMENT FEATURES
- The machine adopts Europe model with neat appearance and good style.
- The directly connected blades adopt lever-swing cutting type.
- The feeding of the blade is driven by hydraulic damping cylinder, with smooth cutting.
- The imported high precision blade makes the cutting surface more smooth. security.
- The imported high precision blade makes the cutting surface more smooth.
- The cutting angle is auto adjustable through the imported servo motor between 45˚ to 157.5˚
- Imported control system can accomplish cutting optimization.
- Several profile processing dimensions can be input in one time and make continuous cutting.
- The processing dimension can be directly input,the cutting length can be changed without returning the reference point.
-- The airproof device under the worktable has wonderful crumbs-clearing effect.
- The following saw cover keeps it working in the clean environment .
- The profile is clamped by two cylinders in every head, and kept the cutting security.
TECHNICAL PARAMETER
| Power supply | 380V/50Hz |
| Cutting motor power | 2×2.2kW 2800 r/min |
| Servomotor power | 2×1kW 1×1.5kW 4050r/min |
| Air pressure | 0.5~0.8MPa |
| Air consumption | 60L/min |
| Blade specification | Ф500×Ф30×4.4 Z= 120 |
| Cutter feeding speed | 0~3m/min |
| Cutter moving speed | 0~20m/min |
| Cutting length | max 6000mm min360mm at 90° max 6000mm min360mm at 45° |
| Cutting width | 135mm |
| Cutting height | 230mm |
| Cutting angle | 45° ~157.5° Any angle in the range |
| Repeat locating length tolerance | ±0.2mm |
| Overall dimension | 7800×1500×2040mm |
| Weight | about 2500kg |
PRODUCT DETAILS

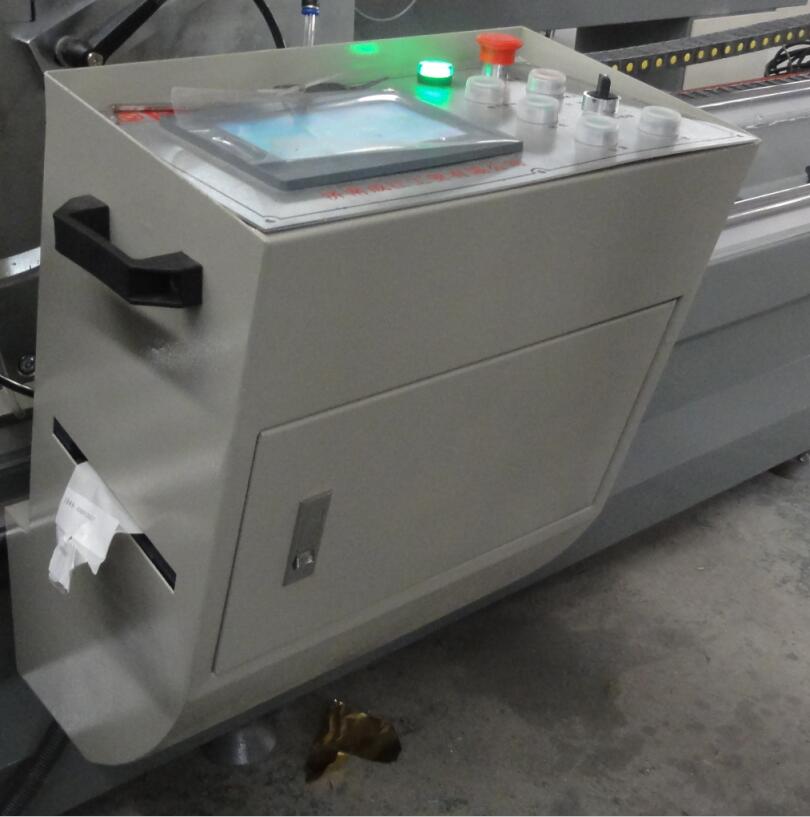

PLC control

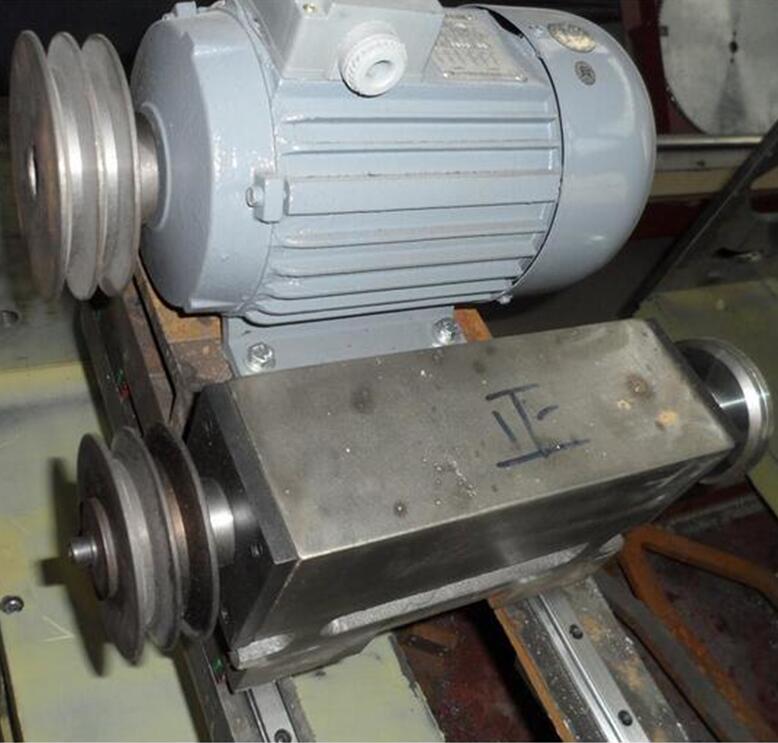

Imported servo motor
