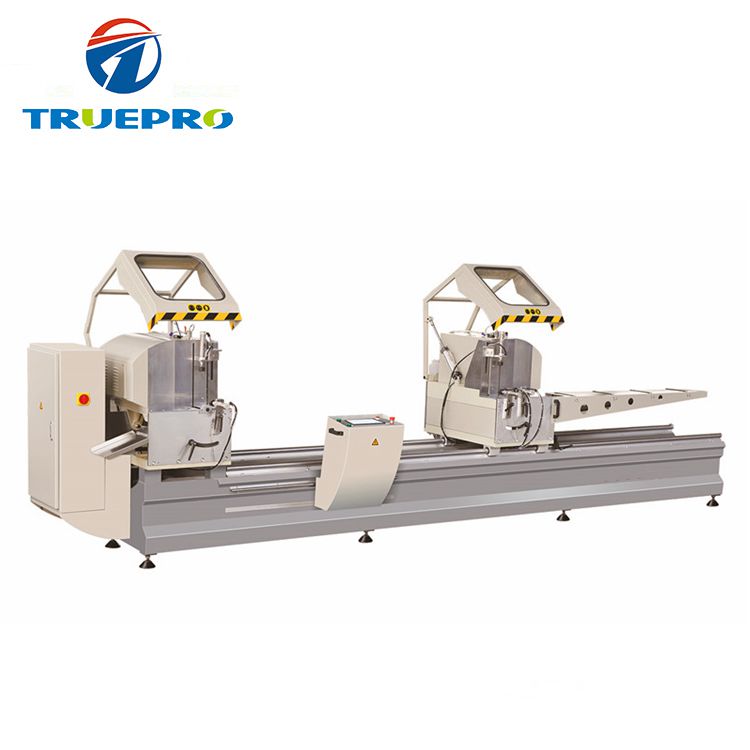

CNC Aluminum Precision Double Head Cutting Saw
  • TRUEPRO
  • Shandong,China
  • 10days
  • 50set/month

4 ADVANTAGES:
1.Specialization and Large-scale assembly capability.2. Master technology,excellent R&D Team.
3. High quality brand accessories. 4. Service specialization and creating max value.

The two head of the CNC Aluminum Precision Double Head Cutting Saw are adjustable and cut the profiles in 45°,90°freely。

CNC Aluminum Precision Double Head Cutting Saw


EQUIPMENT FEATURES

- Used for cutting aluminum for doors and windows, curtain wall etc.

- The feeding system adopts the imported linear guide pair, with high accuracy and stability.

- Right head movement adopts the form of high precision rack and pinion movement, high transmission precision,

accurate positioning and smooth operation.

- Two saw heads are adjustable and cut the profiles in45°, 90°freely.

- Imported carbide saw blade features accurate processing and high endurance.

- Imported linear guiding pair ensures steady processing accuracy.

- Saw blade rotates smoothly due to high accurate main spindle.

- Uniform speed feeding and smooth motion are due to air hydraulic damping cylinear.

- Auto-opening shield makes the operation more safety.

- Middle auto-induction profile supporter and following profile sup porter made the loading and clamping convenient.


TECHNNICAL PARAMETER

ModelCLJZ2S-600*4200
Power suply380V 50Hz
Cutting motor power1.5Kw 4050r/min
Servomotor power0.5-0.8MPa
Air consumption60L/min
Blade specificationΦ500*Φ30*4.4 Z=120
Cutter feeding speed0-3m/min
Cutter moving speed range0-20m/min
Cutter length

max 4200mm min 360mm at 90°

max4200mm min 360mm add two profile heights at 45°

Cutting width*height

max 150mm*150mm at 45°

max 150mm*200mm at 90°

Cutting angle 90°、45°
Overall dimension5900*1750*1950mm
Weightabout1850kg

PRODUCT DETAILS


The design of the head is meticulous, safe and accurate.


CNC precise double-head cutting saw4_编辑.jpg

Distribution box arranged neatly, imported components.


45°and 90° cutting of the samples.
