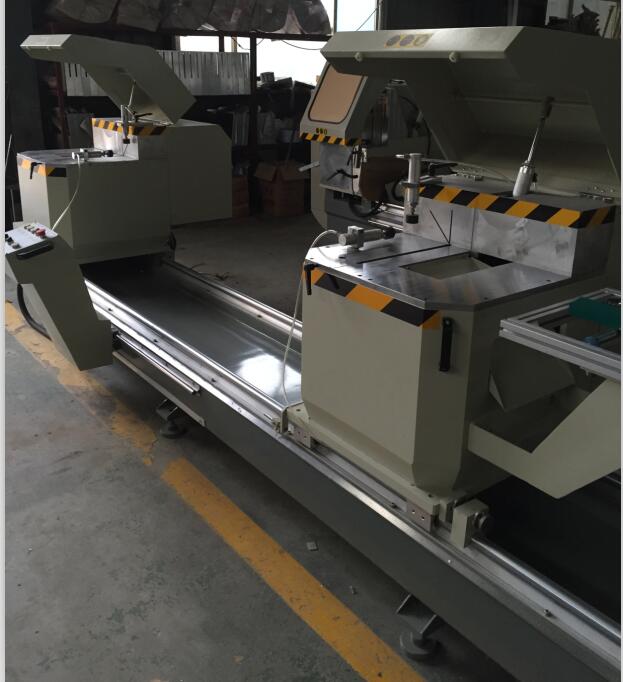

Aluminum UPVC Window Door Frame CNC Double-Head Precision Cutting Saw Machine

  • Aluminum UPVC Window Door Frame CNC Double-Head Precision Cutting Saw Machine Manufacturers, Aluminum UPVC Window Door Frame CNC Double-Head Precision Cutting Saw Machine Factory, Supply Aluminum UPVC Window Door Frame CNC Double-Head Precision Cutting Saw Machine
Aluminum UPVC Window Door Frame CNC Double-Head Precision Cutting Saw Machine
  • TRUEPRO
  • Shandong,China
  • 15days
  • 10set/week

We're a professional Double head precision cutting saw machine manufacturer in China. All products for sale are with high quality and good price.

The use of carbide saw blades,diameter up to Φ500,line of high speed,high precision machining.
Machine during operation,two head can cut together,also can separate cutting.

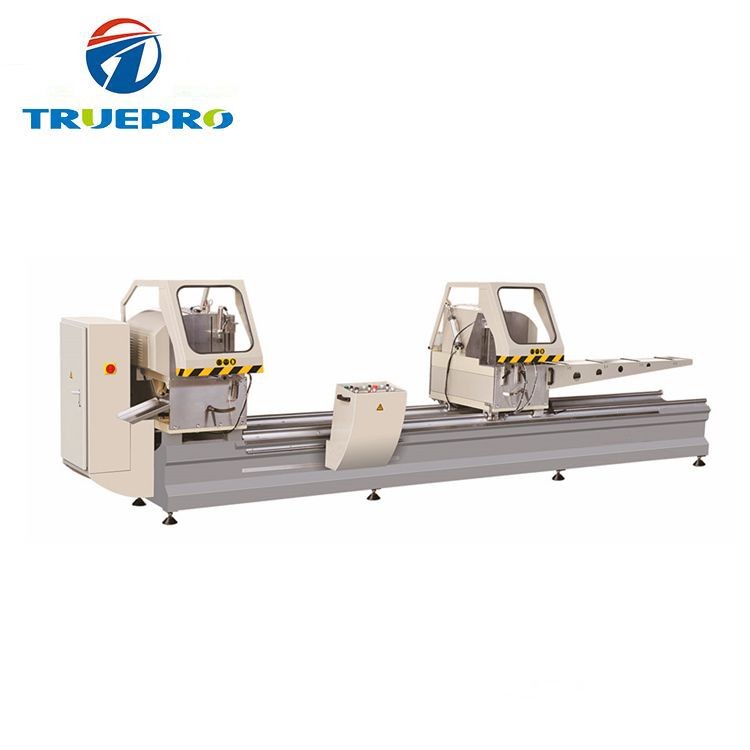

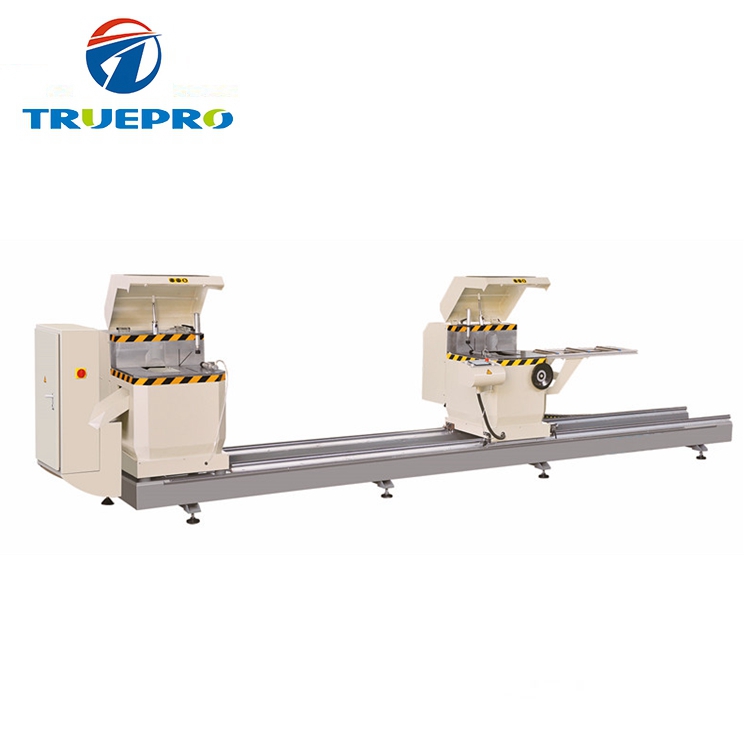

Aluminum UPVC Window Door Frame CNC Double-Head Precesion Cutting Saw Machine

Aluminium window machine.jpg



EQUIPMENT FEATURES

- The main material for aluminum alloy curtain wall, window material cutting, andcan also be used for plastic profile cutting.

 - The use of carbide saw blades, diameter up to 500 dia, line of high speed, high  precision machining.

 - Right heads feeding adopts pitch ball screw-lead motion,with high accurate driving ,locating and smooth working

 - This machine uses the numerical control technology, profiles of different  convenient maintenance, etc. expected size.

 - Machine during operation, two saw blade can cut, can separate cutting.

- The saw head can be set to 45 degrees and 90 degrees need angle.

- The blade from the bottom to the top, sawing profile is more safe and reliable, and the cutting height and cutting width are large.


TECHNICAL PARAMETER

Power supply 380V/50Hz
Cutting motor power 2×2.2kW/2×3.0kW
Cutting motor rotary speed 2800r/min
Operation air pressure 0.6~0.8MPa
Air consumption 60L/min
Blade specificationФ500×Ф30/Ф600×Ф30mm
cutting length 400~5000 mm
Cutting width 150mm
Max cutting section135×200mm/135×300mm
Cutting angle 90°、45° - Cutting height : max 200mm
Contour dimension 5750×1300×1500mm Cutting angle : 45° 90° 135°


PRODUCT DETAILS

Double head cutting machine cnc4.jpg

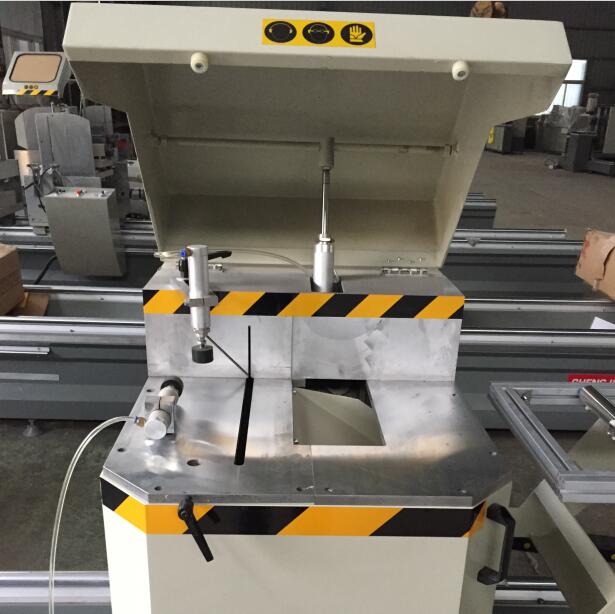

The head structure


Double head cutting machine cnc9.jpg

Solid fuselage

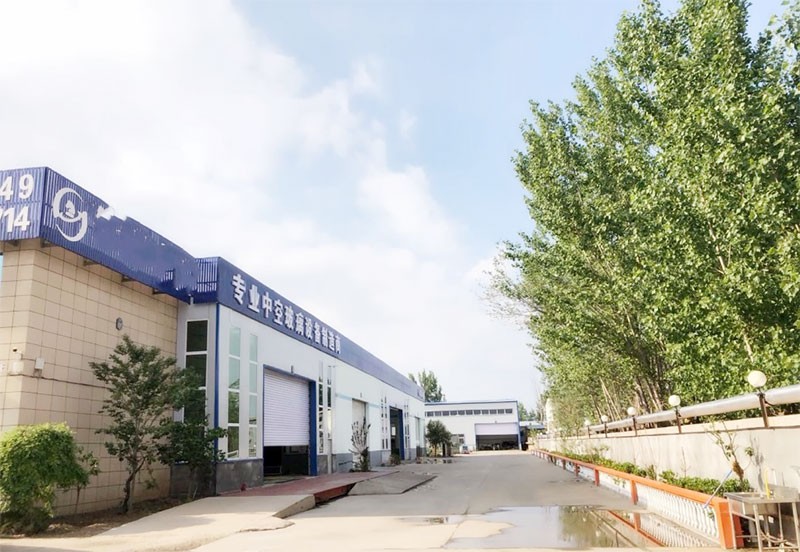

Factory Show

Factory Show
Team Service

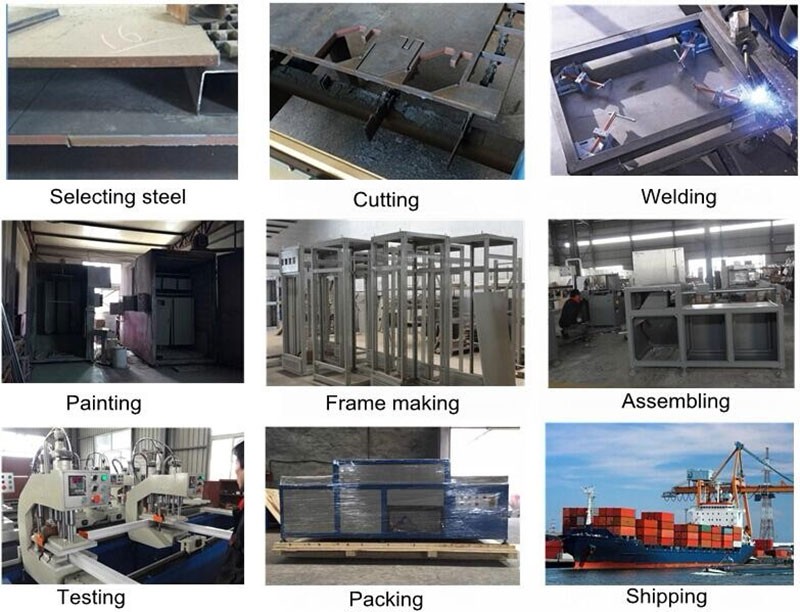

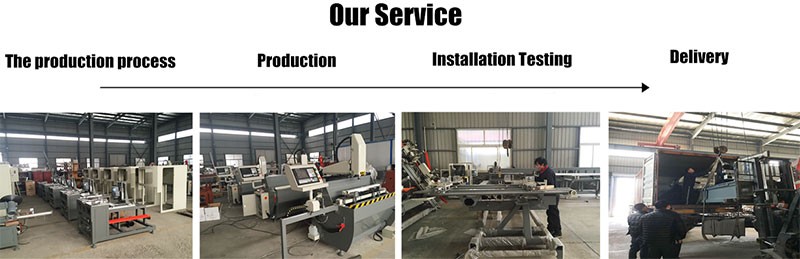

The Production process
Delivery
OUR SERVICE
Responsibility
Social Welfare Activities
Company Style
OFFICE ENVIRONMENT
Exhibition Activities
FENESTRATION BAU CHINA 2017
FAQ
Do you provide equipment operation training?
Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport....more
