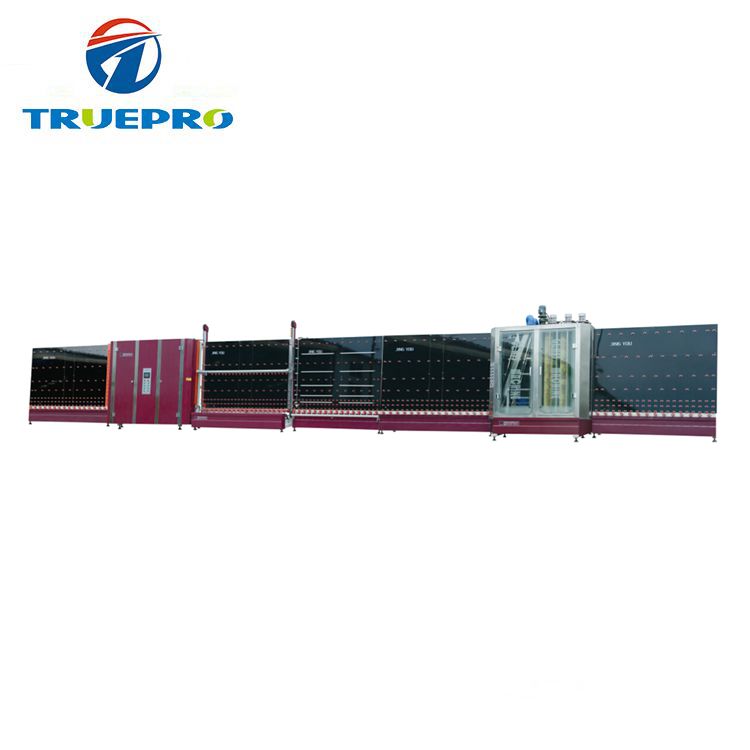

Vertical Inslating Double Glass Glazing Machine
  • TRUEPRO
  • Shandong,China
  • 20Days
  • 300Sets/Year

Our company is a manufacturer of window machine,insulating glass processing machine and curtain wall machine with well-equipped testing equipment and strong technical force.

Vertical Inslating Double Glass Glazing Machine PLC control touch screen human-machine interface.

Double glazing machine The application of imported vacuum generator and suction cup make better glass catching effect.

Vertical Inslating Double Glass Glazing Machine



EQUIPMENT FEATURES:

-PLC control touch screen human-machine interface.

-Automatic identification of coated glass and LOW-E glass film layer.

-The application of imported vacuum generator and suction cup make better glass catching effect.

-Three pairs of glass cleaning hairbrushes rotation speed can be driven by frequency conversation.

-Big small sized and three layer hallow glass can be produced according to constomer requirements.

-Digital controlled assembling line to save production time and improve efficiency.

-The production panel has been processed with plastic spraying to achieve beautiful appearance and durable service life.

-Cleaning machine is made with stainless steel and resistance material.

-All electric appliance are selected from famous international brand.

-The press section can be pushed to 450mm with big stroke to make it convenience for maintenance.

-When for exterior conjunction the plate press adopts central location way.

-Free alternative between interior and exterior cunjunction.

-The press section adopts opening-door style to convenient overhaul and maintenance.

MAIN SPECIFICATION and TECHNICAL PARAMETER:

ModelJYW-2000
Power supply380V/50Hz
Power23.0KW
Work pressure0.5~0.8MPa
Cutting glass size2000x2500mm
Max glass size280x450mm
Pane glass thickness3-18mm
Transfer speed8-45m/min
Toatal weight5000kg
Boundary dimension18500x2100x3200mm

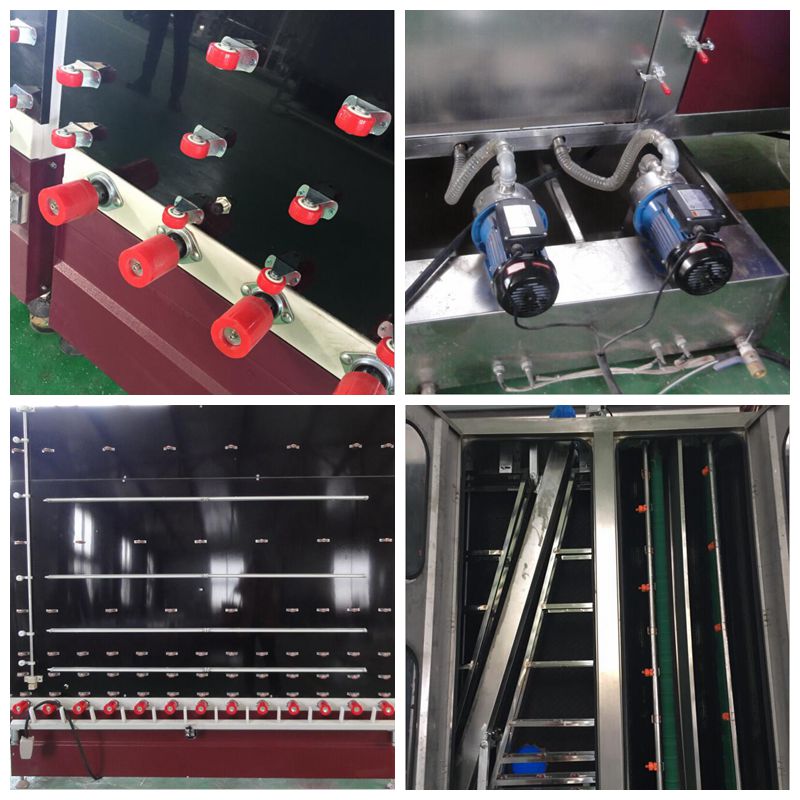

PRODUCR DETAILS:
