4 series of superior products,professonal services for global users:01 Intelligent processing equipment for industrial aluminum profiles.02 Intelligent processing equipment for aluminum win-door and curtain wall.03 UPVC doors and windows professional processing equipment.04 Insulating glass professional processing equipment.
Single Head Corner Combining Machine the frame is specially jointed by steel with high quality and then does special process.
Single head corner combining machine Synchro Feeding structure make the adjustment very easy.

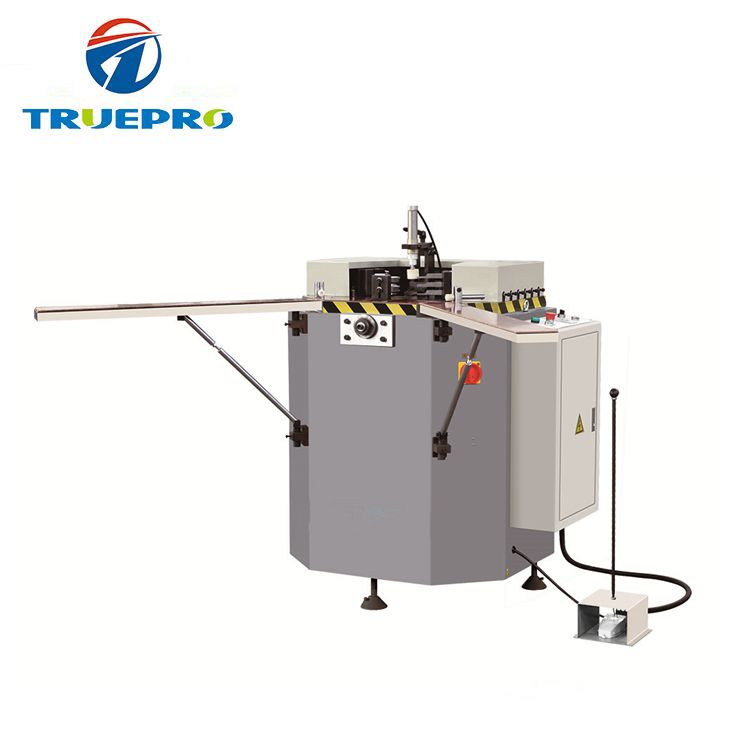

WhatsappSingle Head Corner Combining Machine For Aluminum Window Door

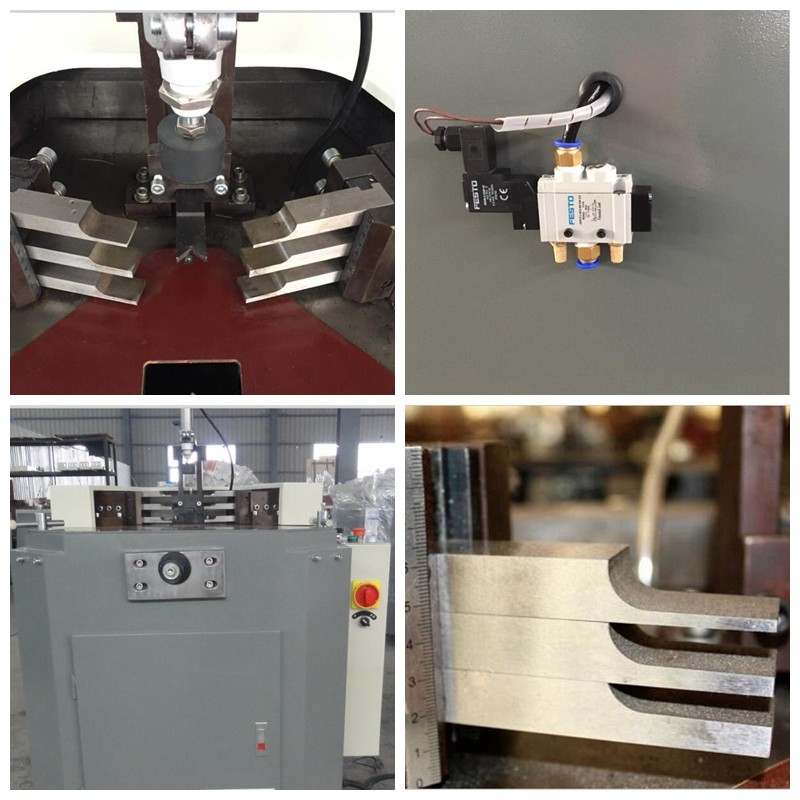

EQUIPMENT FEATURES:
- The frame is specially jointed by steel with high quality and then does special process.
- Adopt new mechanical linkage device, realized complete synchro nous corner combining.
- Synchro Feeding structure make the adjustment very easy.
- Screw thread regulates the distance between up and down crimping blade ensures regulates blades easily.
MAIN SPECIFICATION and TECHNICAL PARAMETER:
| Power supply | 380V/50Hz |
| Rating power | 2.2KW |
| Rated pressure | 16MPa |
| Air consumption pressure | 0.5~0.8MPa |
| General pressure of corner combining | 48KN |
| Capability of oil box | 20L |
| Corner crimping casing movement journey | 0~85mm |
| Pro le processing width | 90mm |
| The adjustable range of the main location block | 54mm |
| Contour dimension | 1300x1200x1300mm |
| Weight | about 400kg |
Factory Show
Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport....more
