4 series of superior products,professonal services for global users:01 Intelligent processing equipment for industrial aluminum profiles.02 Intelligent processing equipment for aluminum win-door and curtain wall.03 UPVC doors and windows professional processing equipment.04 Insulating glass professional processing equipment.

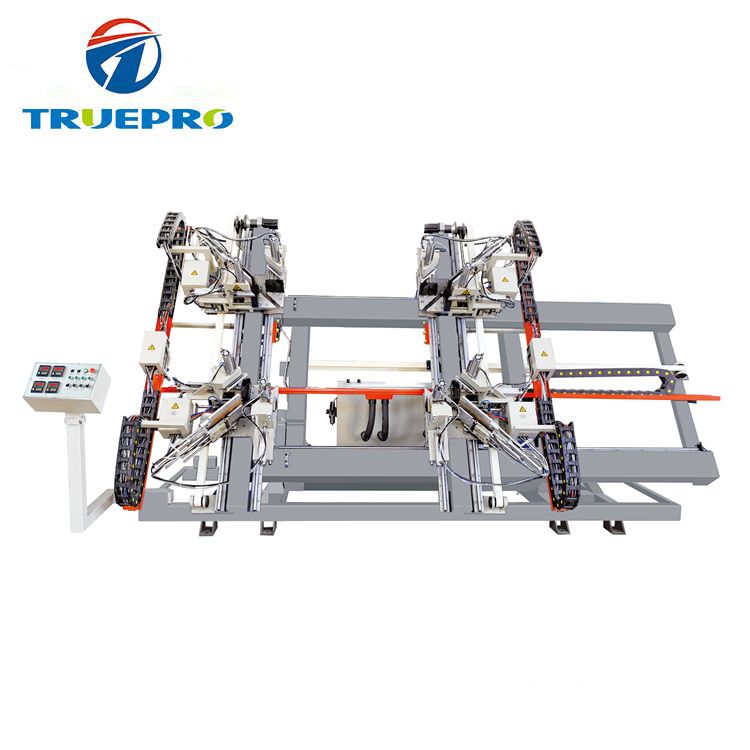

PVC Profile CNC Four Corner Vertical Welding Machine Common profile
fixture along with the machine can meet various height profiles' processing requirement.
Imported computer control system, for high precise welding, easy operation and high stability.
WhatsappPVC Profile CNC Four Corner Vertical Welding Machine

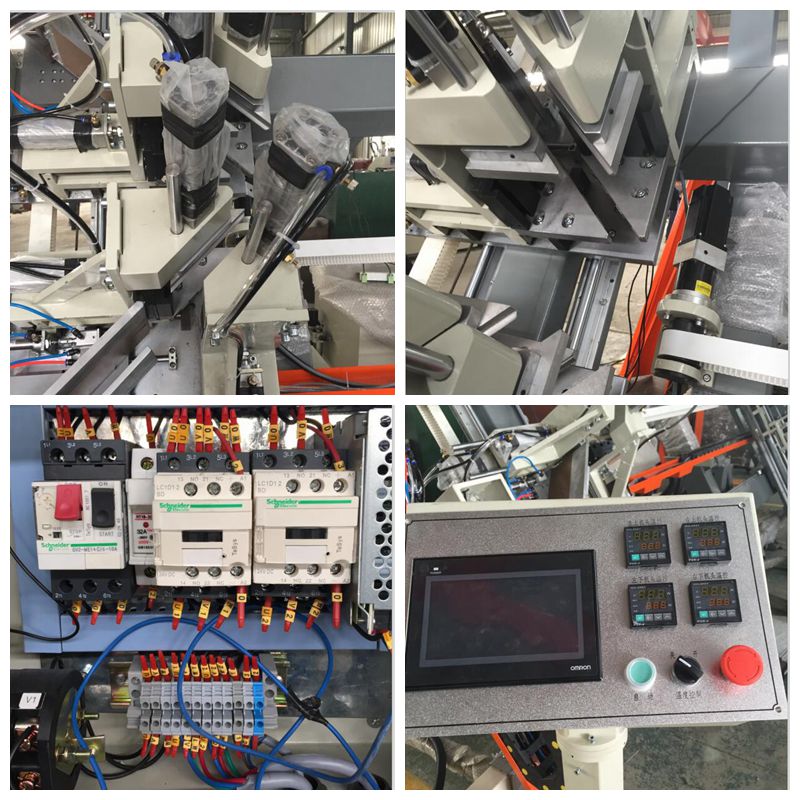

EQUIPMENT FEATURES:
- One working cycle, one frame, if with double layers, one working cycle, two
- Imported computer control system, for high precise welding, easy operation and
- Common profile fixture along with the machine can meet various height profiles'
- Two profile-clamps synchronously and symmetrically feeding forward to realize
parallel welding. Increased corner strength.
MAIN SPECIFICATION and TECHNICAL PARAMETER:
| Input Voltage | 3N~50Hz 380V/220V |
| Input Power | 14.5KW |
| Air Pressure | 0.4~0.6 MPa |
| Air Consumption | 200L/min |
| Processing Profile Height | 25~160mm |
| Processing Profile Width | 130mm |
| Welding Range | 400×400~1800×3000mm |
| Overall Dimension | 5000×2000×2860mm |
| Weight | 3000kg |
Factory Show
Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport....more
