Hinge Hole Combination Drilling Machine For Aluminum Profile
  • TRUEPRO
  • Shandong,China
  • 10Days
  • 50sets/month

4 series of superior products,professonal services for global users:01 Intelligent processing equipment for industrial aluminum profiles.02 Intelligent processing equipment for aluminum win-door and curtain wall.03 UPVC doors and windows professional processing equipment.04 Insulating glass professional processing equipment.

Hinge Hole Combination Drilling Machine used for drilling hinge installing hole, sliding support hole and four connectiongrod hole of aluminum window and door profile.

It can process on both sides of total 8 holes at one time.maching efficiency is very high.

It uesd of high precision multi axis drilling package from-Taiwan to ensure machining accuracy and service life.

Hinge Hole Combination Drilling Machine For Aluminum Profile

combination drilling machine.jpg

EQUIPMENT FEATURES:

-It used for drilling hinge installing hole, sliding support hole and four connectiongrod hole of aluminum window and door profile.

-It can process on both sides of total 8 holes at one time.maching efficiency is very high.

-It uesd of high precision multi axis drilling package from-Taiwan to ensure machining accuracy and service life.

-Foot switches control action, easy to operate.

MAIN SPECIFICATION and TECHNICAL PARAMETER:

Power supply380V/50Hz
Output power3.0KW
Operation air pressure0.5~0.8MPa
No. of power-drill8
Process dimension300x2000mm
Drilling diameterФ1~7mm
Min hole distance22mm
Max hole distance380mm
Spindle speed1400rpm
Contour dimension
3100x120x960mm
Weightabout 750kg

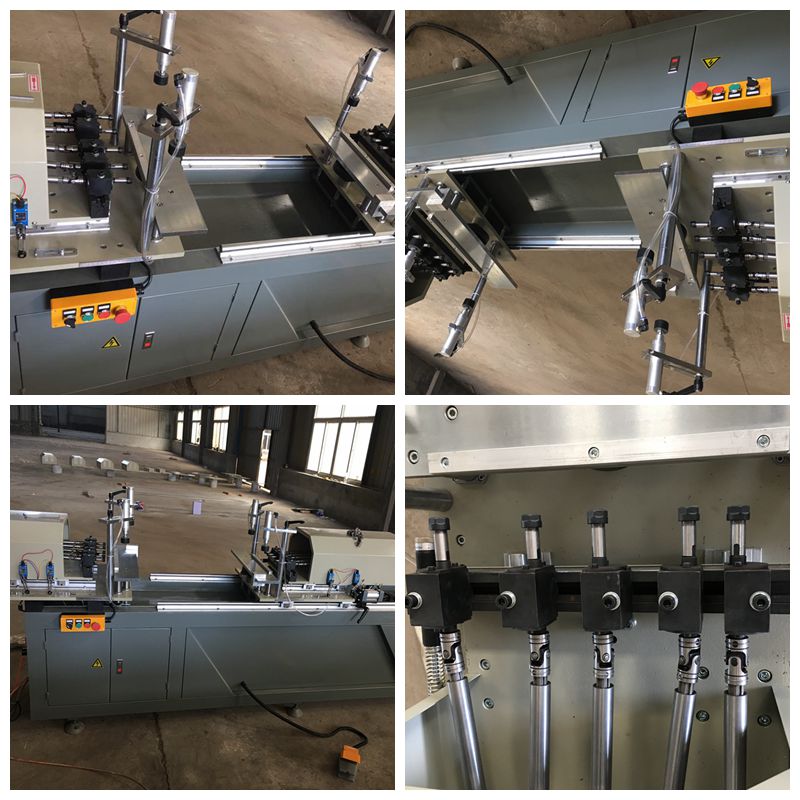

PRODUCT DETAILS



Factory Show

Factory Show
Team Service
The Production process
Delivery
OUR SERVICE
Responsibility
Social Welfare Activities
Company Style
OFFICE ENVIRONMENT
Exhibition Activities
FENESTRATION BAU CHINA 2017
FAQ
Do you provide equipment operation training?
Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport....more
