Curtain Wall Seven Heads Combination Drilling Hole Machine

  • Curtain Wall Seven Heads Combination Drilling Hole Machine Manufacturers, Curtain Wall Seven Heads Combination Drilling Hole Machine Factory, Supply Curtain Wall Seven Heads Combination Drilling Hole Machine
Curtain Wall Seven Heads Combination Drilling Hole Machine
  • TRUEPRO
  • Shandong,China
  • 10Days
  • 1000Sets/Year

4 series of superior products,professonal services for global users:01 Intelligent processing equipment for industrial aluminum profiles.02 Intelligent processing equipment for aluminum win-door and curtain wall.03 UPVC doors and windows professional processing equipment.04 Insulating glass professional processing equipment.

Curtain Wall Seven Heads Combination Drilling Hole Machine used for drilling holes on aluminum profiles and curtain wall profiles. Apply to volume-produce.

Max processing profile section size is 250x250mm, max processing length is 5000mm.

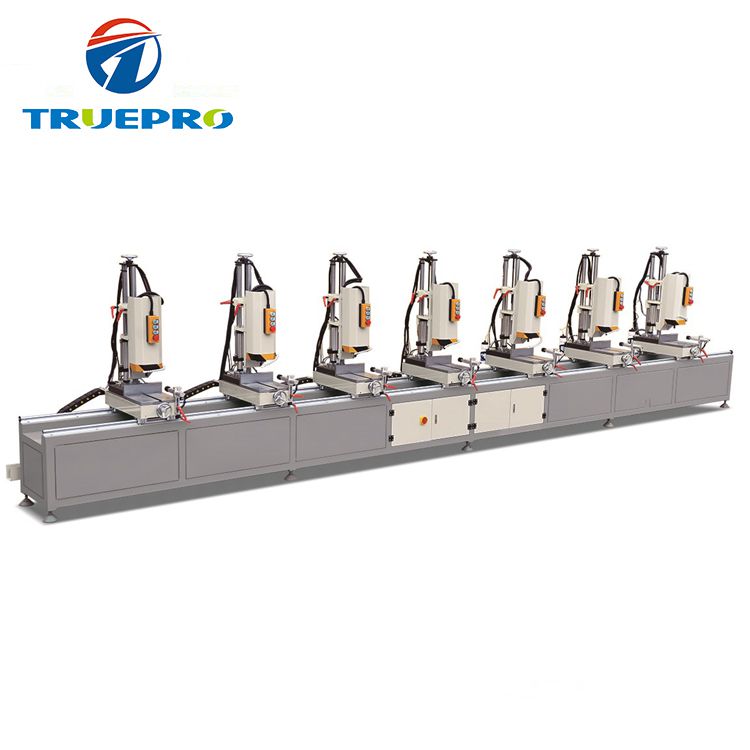

Curtain Wall Seven Heads Combination Drilling Hole Machine

drilling machine20.jpg

EQUIPMENT FEATURES:

- Used for drilling holes on aluminum profiles and curtain wall profiles. Apply to volume-produce.

-Max processing profile section size is 250x250mm, max processing length is 5000mm.

- Multi-head boring anchor can be fixed to meet multi-holes processing requirement.

- Feeding system adopts airdraulic-damping cylinder, which ensured smooth feeding.

- Imported Schneider PLC control system with steady capability.

MAIN SPECIFICATION and TECHNICAL PARAMETER:

Power supply380V/50Hz
Cutting motor power7x1.5KW
Feeding  pressure0.5~0.8MPa
Power unit quantity
7
Max diatance between two drilling holes5000mm
Min distance between each group holes300mm
Max drilling hole diameter
13mm
Worktable size
300x200mm
Drilling head feeding travel125mm
Max processing profile section size250x250mm
Overall dimension5000x1100x1800mm
Weightabout 1350kg

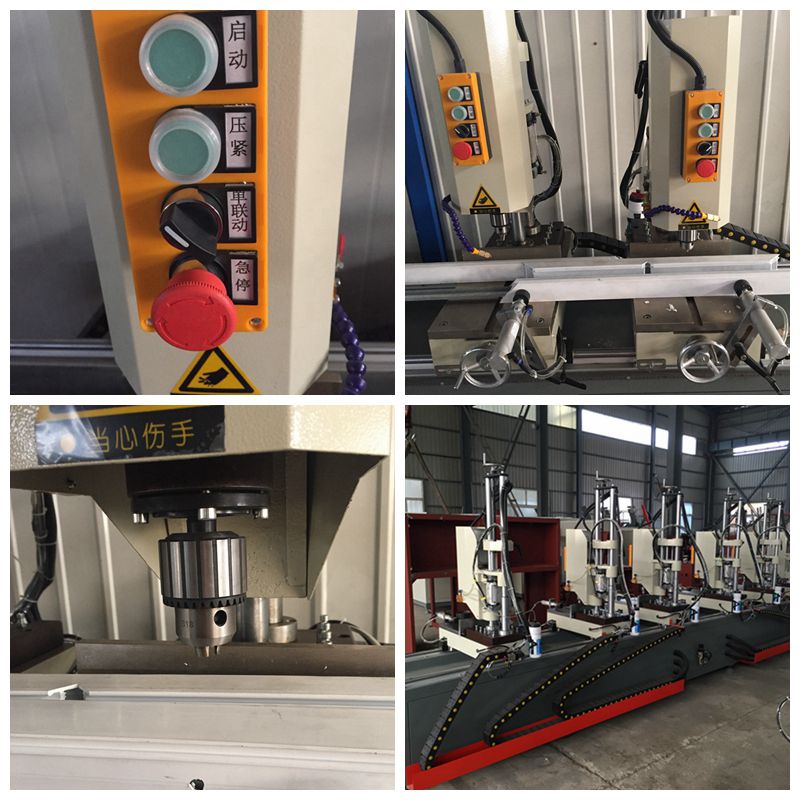

PRODUCT DETAILS



Factory Show

Factory Show
Team Service
The Production process
Delivery
OUR SERVICE
Responsibility
Social Welfare Activities
Company Style
OFFICE ENVIRONMENT
Exhibition Activities
FENESTRATION BAU CHINA 2017
FAQ
Do you provide equipment operation training?
Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport....more
