4 series of superior products,professonal services for global users:01 Intelligent processing equipment for industrial aluminum profiles.02 Intelligent processing equipment for aluminum win-door and curtain wall.03 UPVC doors and windows professional processing equipment.04 Insulating glass professional processing equipment.

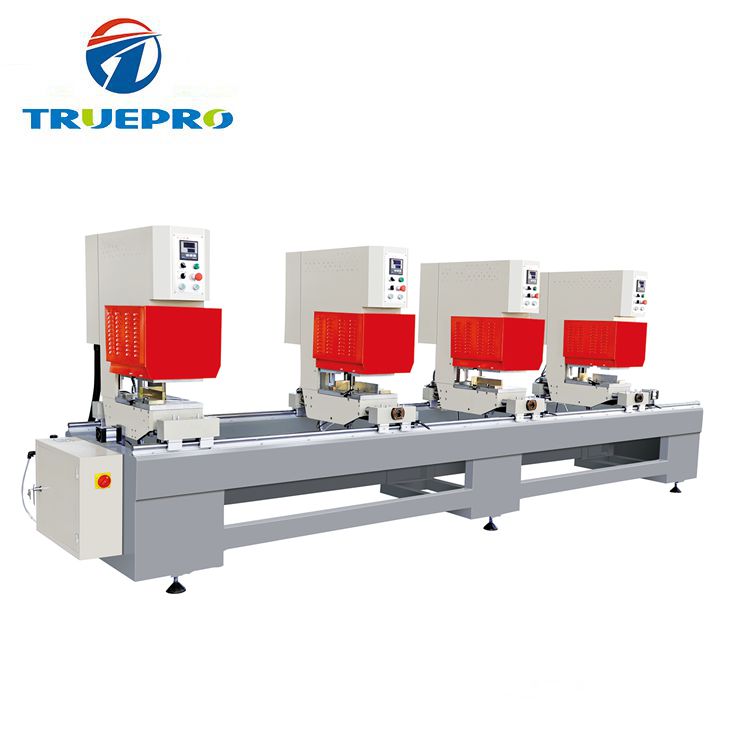

Colorful PVC Win-door Seamless Welding Machine Co-extrusion tool adopt aluminum alloy material, it’s precisely processed with high-frequency quenching, realize a high degree of standardization for the tool,support tool swap.
Equiped with the automatic blowing system, can improve work efficiency, and thus thoroughly Remove the welding slag.
WhatsappColorful PVC Win-door Seamless Welding Machine
EQUIPMENT FEATURES:
- Co-extrusion tool adopt aluminum alloy material, it’s precisely processed with high-frequency quenching,
realize a high degree of standardization for the tool,support tool swap.
- Equiped with the automatic blowing system, can improve work efficiency, and thus thoroughly Remove the welding slag.
MAIN SPECIFICATION and TECHNICAL PARAMETER:
| Operation Air Pressure | 0.4~0.6MPa |
| Air Consumption | 280L/min |
| Input Voltage | 220V/50Hz |
| Input Power | 4.5kW |
| Welding Height | 20~100mm |
| Welding Width | 120mm |
| Welding Range | 400~4500mm |
| Overall Dimension | 5400×1100×1700mm |
| Machine Weight | 1750kg |

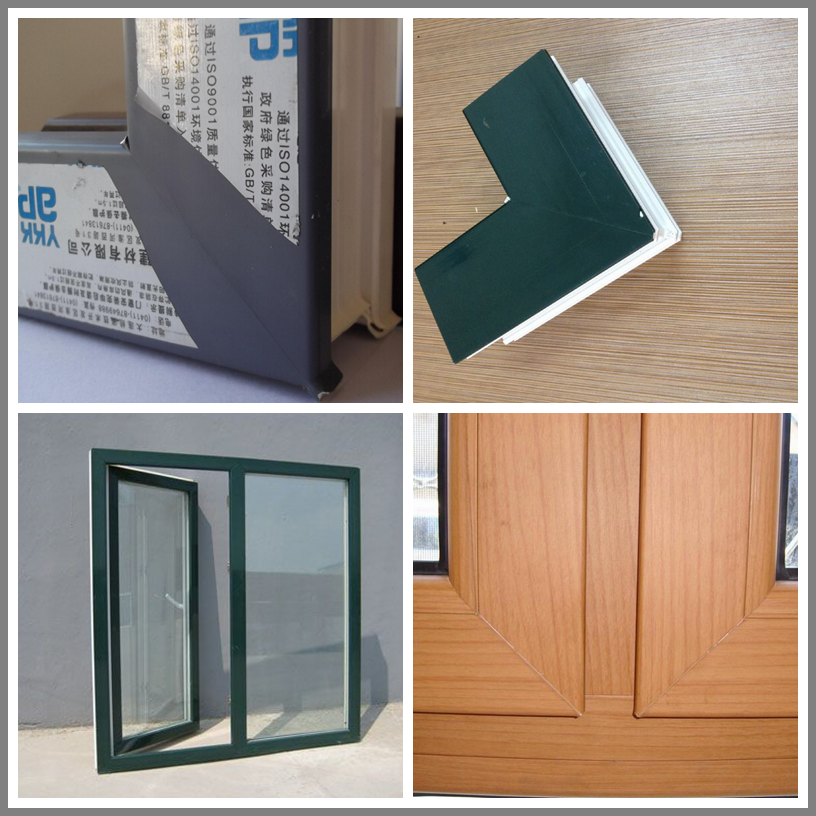

PROCESSING SAMPLES

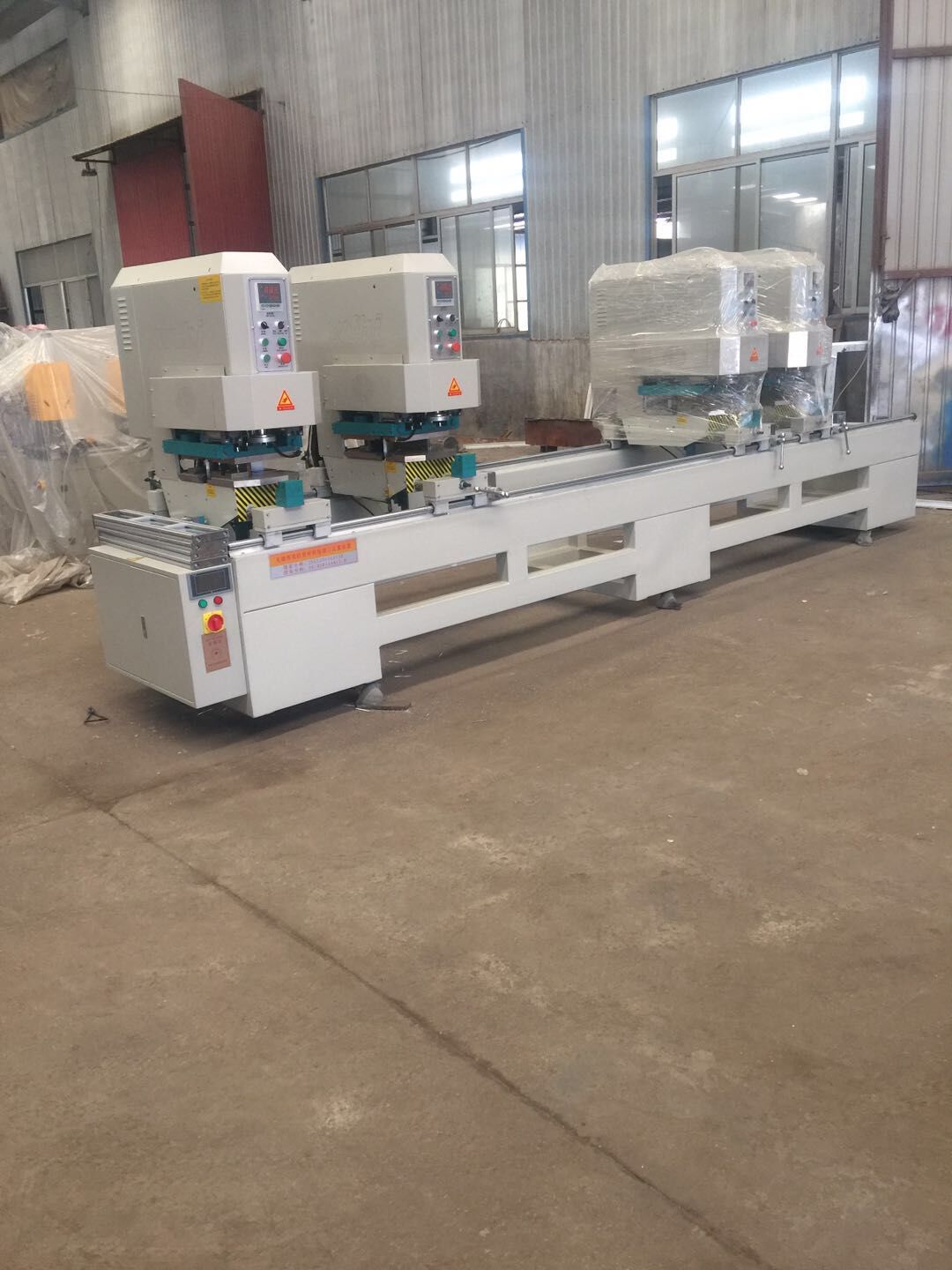

Factory Show
Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport....more
