4 series of superior products,professonal services for global users:01 Intelligent processing equipment for industrial aluminum profiles.02 Intelligent processing equipment for aluminum win-door and curtain wall.03 UPVC doors and windows professional processing equipment.04 Insulating glass professional processing equipment.
Aluminum window door three position punching machine used advanced and reliable mechanical structure design and solved two big technical diffcult problems of the mould damage and equipment wornness because of imbalance of cutting force.
Using extended the workbench, 3 position can install 3 moulds and can work at the same time, greatly improve the working efficiency.

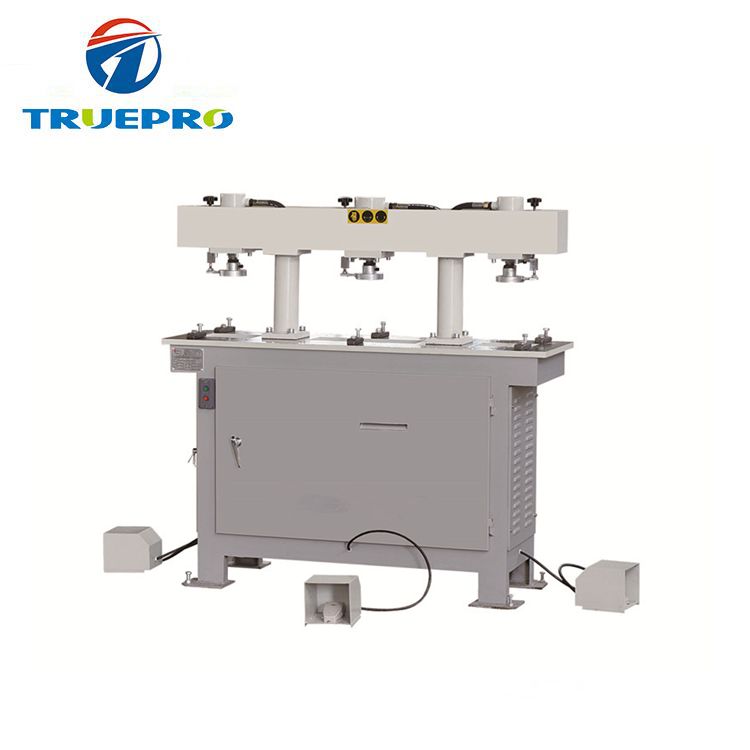

WhatsappAluminum window door three position punching machine
![4{[LV7)QV{$DZA179C]4I5I_副本.jpg](../../uploadImages/1419-201907091643583611.jpg "4{[LV7)QV{$DZA179C]4I5I_副本.jpg")
EQUIPMENT FEATURES:
-Applied to punching processing of single modes and combination modes.
-Lnsttallation and replacement of mould can be of large,convenientness fastness,high speed and high production
-Used advanced and reliable mechanical structure design and solved two big technical diffcult problems of the mould damage
and equipment wornness because of imbalance of cutting force.
-Using extended the workbench, 3 position can install 3 moulds and can work at the same time, greatly improve the working efficiency.
MAIN SPECIFICATION and TECHNICAL PARAMETER:
| Power supply | 380V/50Hz |
| Input power | 3.0KW |
| Rated pressure | 12MPa |
| Press nominal pressure | 100KN |
| Interal of equipment of mould | 3 |
| Capability of oil box | 50L |
| Overall dimension | 1500x730x1280mm |
| Weight | about 400kg |
