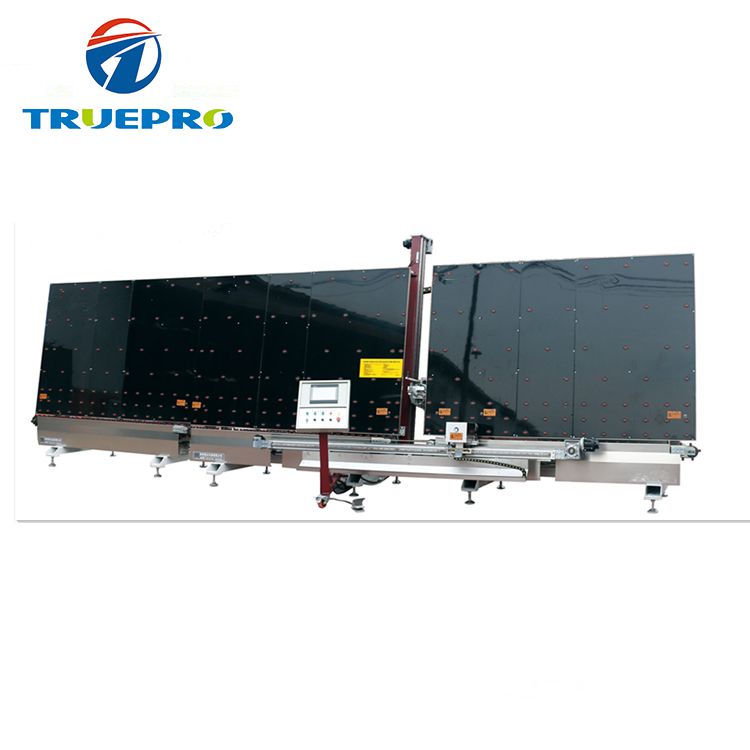

Vertical Insulating Glass Sealing Machine

  • Vertical Insulating Glass Sealing Machine Manufacturers, Vertical Insulating Glass Sealing Machine Factory, Supply Vertical Insulating Glass Sealing Machine
Vertical Insulating Glass Sealing Machine
  • TRUEPRO
  • Shandong,China
  • 20Days
  • 300Sets/Year

Our company is a manufacturer of window machine,insulating glass processing machine and curtain wall machine with well-equipped testing equipment and strong technical force.

Vertical Insulating Glass Sealing Machine is all intelligent touch interface, easy to operate: support triple insulating glass.

Conveyor belt transporting the glass smwthly, with precise positioning.

Vertical Insulating Glass Sealing Machine

insulating glass sealing machine

EQUIPMENT FEATURES:

-Suitable for large-scale glass deep-processing enterprises, reduce labor intensity and improve efficiency.

-All intelligent touch interface, easy to operate support triple insulating glass.

-Servo control system uses world-renowned brands, stable perfoemance.

-Conveyor belt transporting the glass smwthly with precise positioning.

-The key components using special material from refined with stable operation, long service life.

-After the sealing, corners no need for modify.

-Third glass can be stored to achieve a streamlined and online working.

-It can be equipped with two sets of completely independent glue supply system, two kinds of sealant with quick switch, one-click operation.

MAIN SPECIFICATION and TECHNICAL PARAMETER:

ModelJYT-2500
Power supply380V 50Hz
Power18KW
Air pressure0.6~0.8MPa
Working pressure32MPa
Max glass size2500x3000mm
Min glass size300x450mm
Working speed5-40m/min
The total weight3000kg
Dimension10000x1500x3600mm

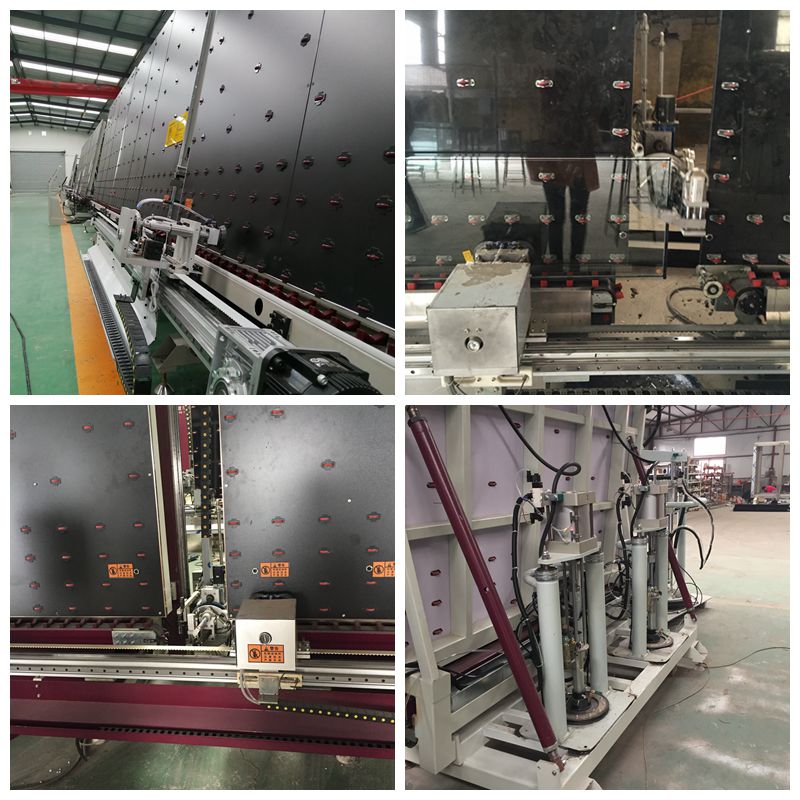

PRODUCT DETAILS:

glass machine

Factory Show

Factory Show
Team Service
The Production process
Delivery
OUR SERVICE
Responsibility
Social Welfare Activities
Company Style
OFFICE ENVIRONMENT
Exhibition Activities
FENESTRATION BAU CHINA 2017
FAQ
Do you provide equipment operation training?
Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport....more
