Precision Double Head Cutting Saw Aluminum Window Machine

  • Precision Double Head Cutting Saw Aluminum Window Machine Manufacturers, Precision Double Head Cutting Saw Aluminum Window Machine Factory, Supply Precision Double Head Cutting Saw Aluminum Window Machine
Precision Double Head Cutting Saw Aluminum Window Machine
  • TRUEPRO
  • Shandong,China
  • 10days
  • 50set/month

Precision Double Head Cutting Saw Aluminum Window Machine is used for cutting aluminum for doors and windows,
curtain etc.

Two cutting head of the aluminum Window cutting saw can work together or single,when together work,one time can cut off the required length and angle.

Double head cutting saw machine can be customized according to the length of the profile length, to complete the precise cutting requirements.

Precision Double Head Cutting Saw Aluminum Window Machine

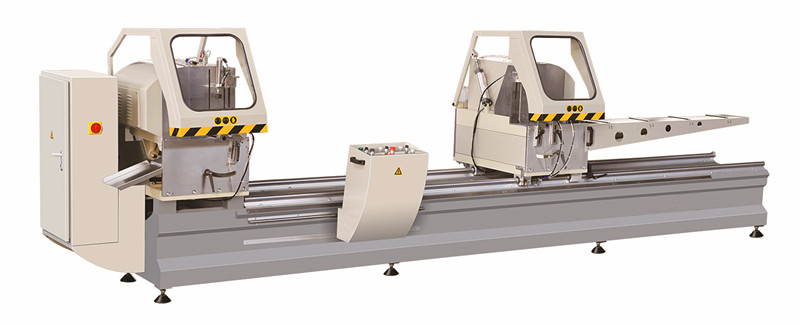

Double head cutting saw machine

EQUIPMENT FEATURES

- Double Head Cutting Saw Aluminum Window Machine has feature of easy operation, reliable performance,

advanced technique and convenient maintenance.

- The profile cutting size adopts the digital display technique to ensure high efficiency and accuracy.

- Imported carbide saw blade gives accurate processing and high efficiency.

- Two cutting heads can work together or single, when together work,one time can cut off the required length and angle.

TECHNICAL PARAMETER


Model CLJZ2B-500*4200
Power supply380V 50Hz
Air pressure0.5~0.8MPa
Cutting motor power2*2.2kw
Motor rotary speed
2800r/min
Air consumption60L/min
Blade SpecificationΦ500*Φ30*4.4 Z=120
Cutting length

max4200mm min360mm at 90°

max4200mm min360mm add two profile heights at 45°

Cutting width*height

max 150mm*150mm at 45°

max 150mm*200mm at 90°

Cutting angle 90° 、45°
Overall dimension5700*1750*1950mm
Weight1800kg

PRODUCT DETAILS

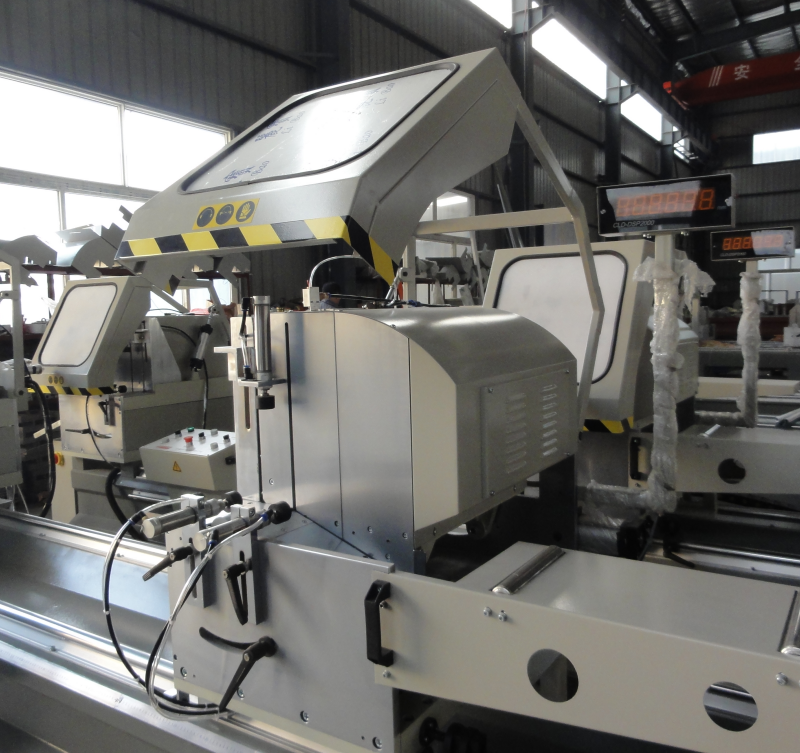

cutting saw machine

The head is fitted with a safety guard.

Aluminum Window cutting saw

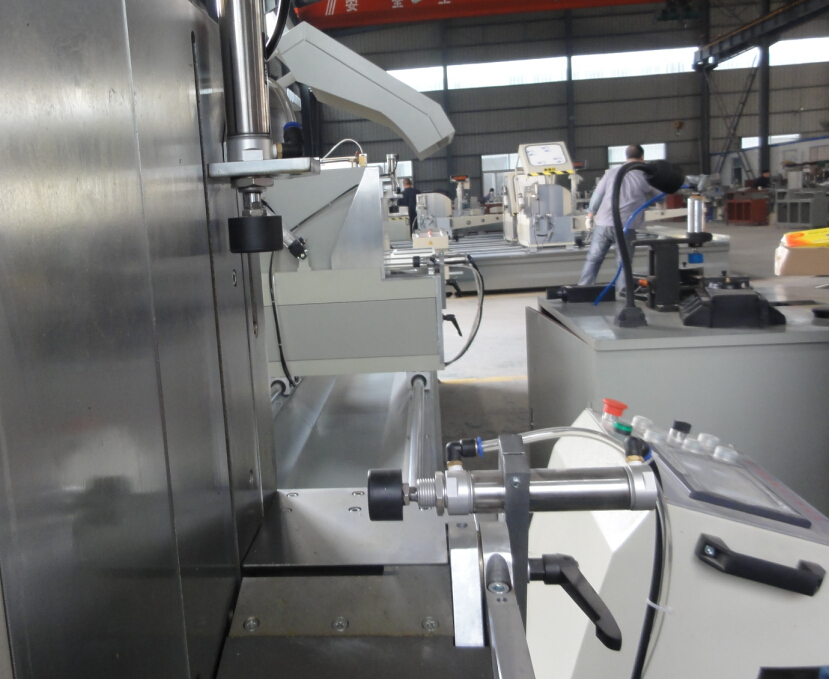

Press cylinder to fix profile.
