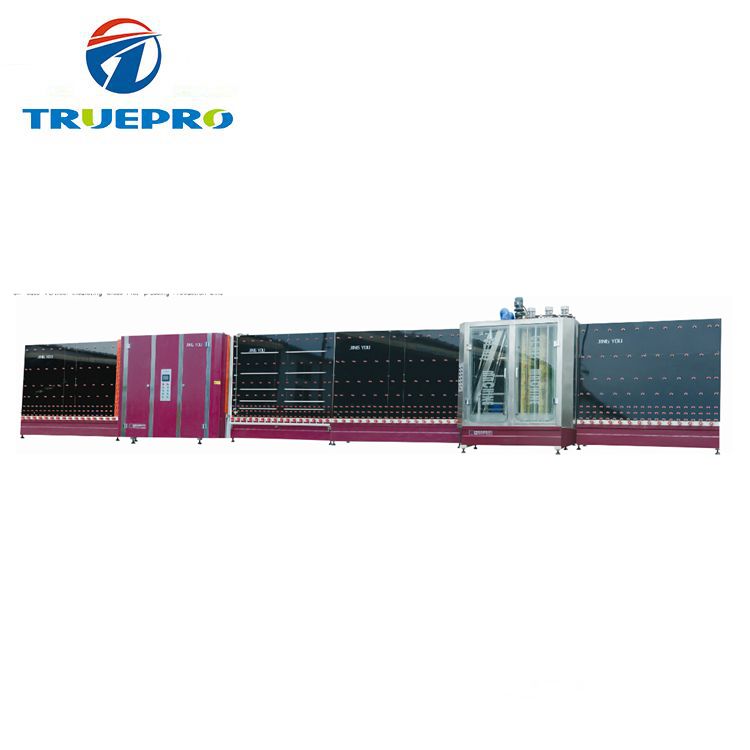

Insulating double glass making machine
  • TRUEPRO
  • Shandong,China
  • 20Days
  • 300Sets/Year

Our company is a manufacturer of window machine,insulating glass processing machine and curtain wall machine with well-equipped testing equipment and strong technical force.

Insulating double glass making machine the production panel has been processed with plastic spraying to achieve beautiful appearance and durable service life.

Insulating glass making machine three pairs of glass cleaning hairbrushes rotation speed can be driven by frequency conversation.

Insulating double glass making machine



EQUIPMENT FEATURES:

-PLC control touch screen human-machine interface.

-Automatic identification of coated glass and LOW-E glass film layer.

-The application of imported vacuum generator and suction cup make better glass catching effect.

-Three pairs of glass cleaning hairbrushes rotation speed can be driven by frequency conversation.

-Big small sized and three layer hallow glass can be produced according to constomer requirements.

-Digital controlled assembling line to save production time and improve efficiency.

-The production panel has been processed with plastic spraying to achieve beautiful appearance and durable service life.

-Cleaning machine is made with stainless steel and resistance material.

-All electric appliance are selected from famous international brand.

-The press section can be pushed to 450mm with big stroke to make it convenience for maintenance.

-When for exterior conjunction the plate press adopts central location way.

-Free alternative between interior and exterior cunjunction.

-The press section adopts opening-door style to convenient overhaul and maintenance.

MAIN SPECIFICATION and TECHNICAL PARAMETER:

ModelJYN-2000
Power Supply380V/50Hz
Power21KW
Work pressure0.5~0.8MPa
Cutting glass size2000x2500mm
Max glass size280x450mm
Pane glass thickness3-18mm
Transfer speed8-45m/min
Total weight4500kg
Boundary dimension15700x2400x3200mm

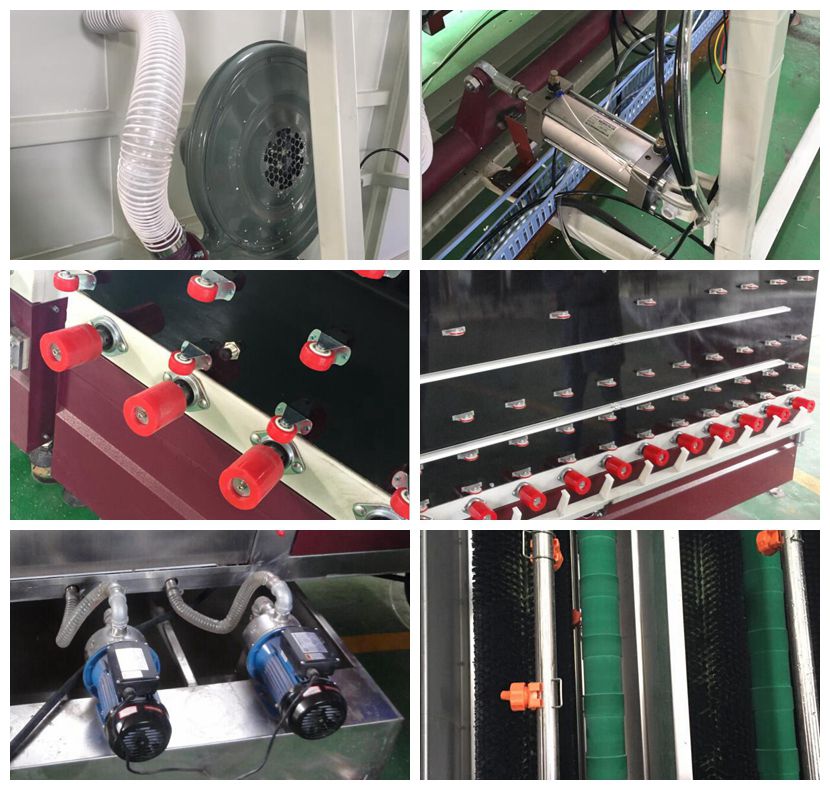

PRODUCT DETAILS:


Factory Show

Factory Show
Team Service
The Production process
Delivery
OUR SERVICE
Responsibility
Social Welfare Activities
Company Style
OFFICE ENVIRONMENT
Exhibition Activities
FENESTRATION BAU CHINA 2017
FAQ
Do you provide equipment operation training?
Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport....more
