CNC Aluminum Window Profile C Shape Bending Machine
  • TRUEPRO
  • Shandong,China
  • 10Days
  • 300Sets/Year

4 series of superior products,professonal services for global users:01 Intelligent processing equipment for industrial aluminum profiles.02 Intelligent processing equipment for aluminum win-door and curtain wall.03 UPVC doors and windows professional processing equipment.04 Insulating glass professional processing equipment.

CNC Aluminum Window Profile C Shape Bending Machine can bend many shapes such as C shape, U shape, S shape, the whole circle and spring.

The machine adopts CNC controller, which make the machine features easy.handling and high precision.

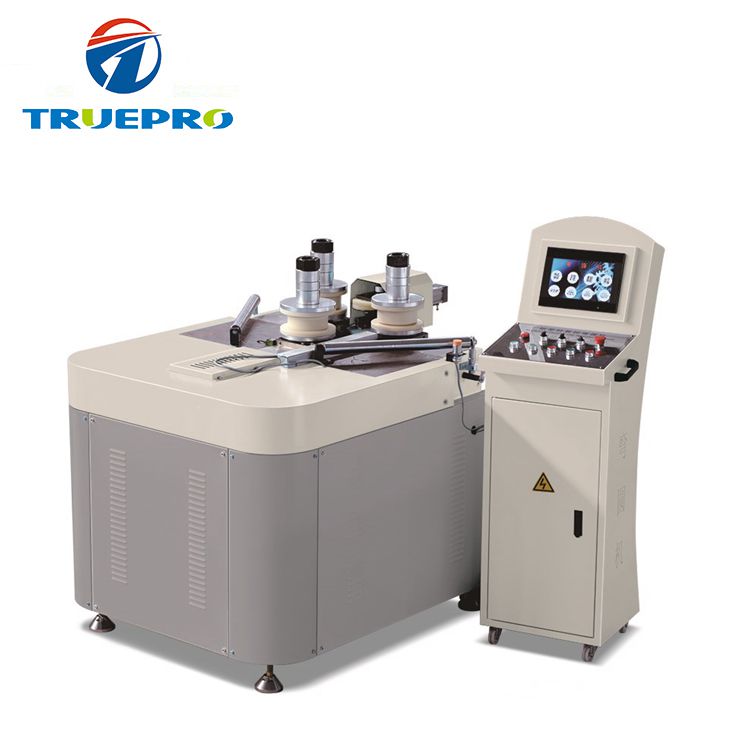

CNC Aluminum Window Profile C Shape Bending Machine

aluminum window bending machine

EQUIPMENT FEATURES:

-The machine is mainly used for bending for metal materials such as Iron, copper.and

aluminum and special-shaped material. It’s ideal equipment of curved process for
furniture manufacturers, wrought iron engineering manufacturers, aluminum alloy
doors and Windows manufacturers, decorative steel structure enterprise.

-The machine adopts CNC controller, which make the machine features easy.handling

and high precision

-Using CNC software, makes the bending operation very simple.

-Can bend many shapes such as C shape, U shape, S shape, the whole circle and

spring.

-Capable of detecting material rebound data, eliminate rebound.

MAIN SPECIFICATION and TECHNICAL PARAMETER:


Power supply380V/50Hz
Input power5.2KW
Working pressure0.2MPa
Min.diameter of bending180mm
Max.width of profile 150x180mm
Max.diameter of rolls200mm
Lower shaft center-dimensions350~750mm
Hydraulic cylinder pressure20T/25T
Roller-holding shaft diameter60/65mm
Rotation speed of shaf1~8r/min
Positioning precision0.01mm
Top roll runout200/280mm
Torque2500N.m
Overall dimension1300x1100x1100mm
Weightabout 1000kg

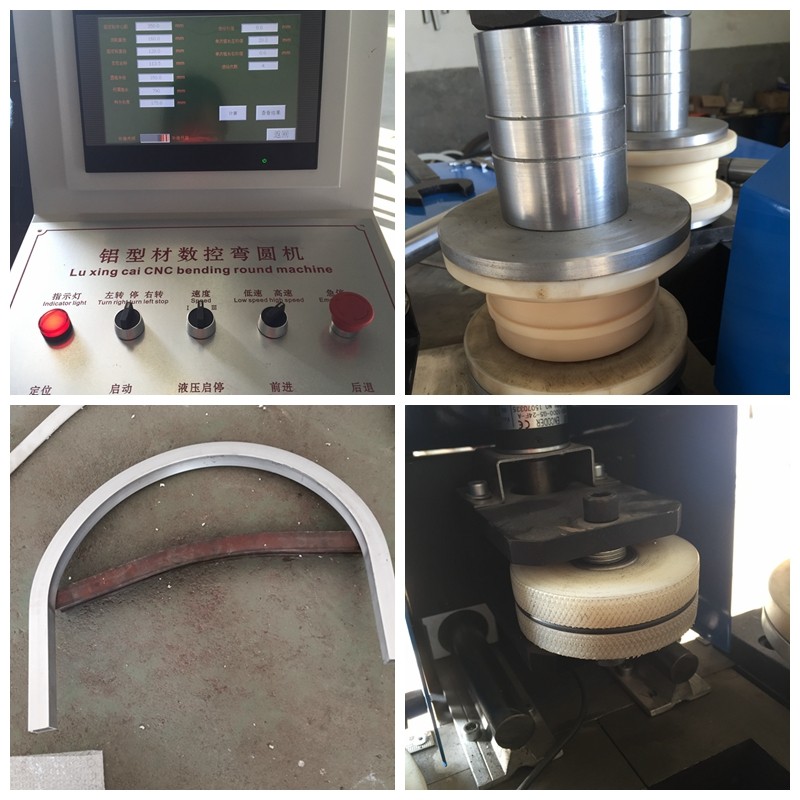

PRODUCT DETAILS


C shape bending machine

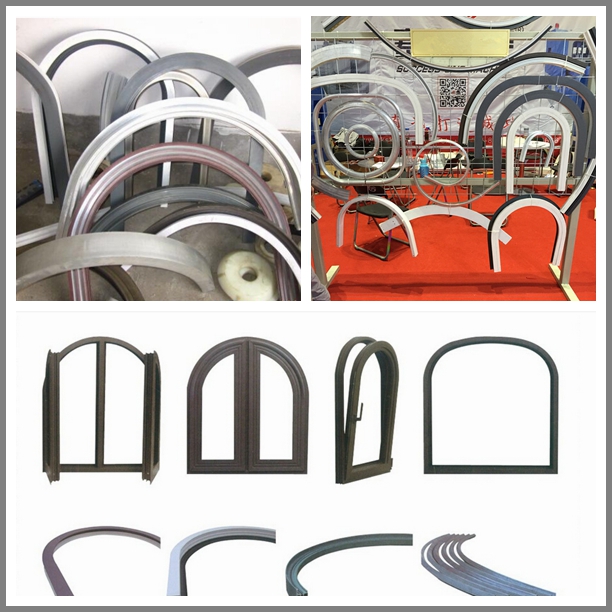

PROCESSING SAMPLES

CNC alunimum bending machine



Factory Show

Factory Show
Team Service
The Production process
Delivery
OUR SERVICE
Responsibility
Social Welfare Activities
Company Style
OFFICE ENVIRONMENT
Exhibition Activities
FENESTRATION BAU CHINA 2017
FAQ
Do you provide equipment operation training?
Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport....more
