4 series of superior products,professonal services for global users:01 Intelligent processing equipment for industrial aluminum profiles.02 Intelligent processing equipment for aluminum win-door and curtain wall.03 UPVC doors and windows professional processing equipment.04 Insulating glass professional processing equipment.

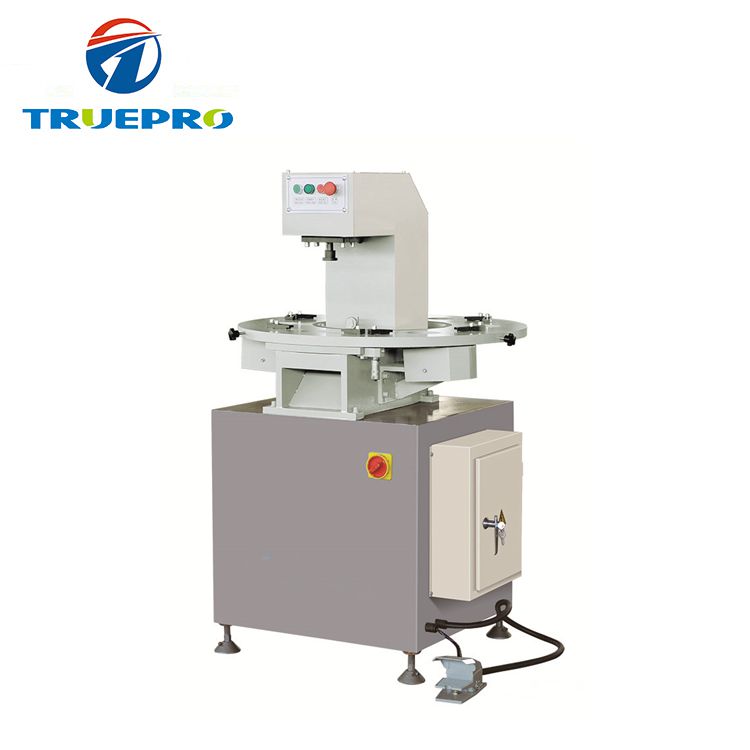

Aluminum Window Profile Six-station Punching Machine Used for installation of aluminum alloy windows and doors and the punching processing of aluminum profiles.
Punching process, by changing processing position, various types profiles can be processed.
WhatsappAluminum Window Profile Six-station Punching Machine
EQUIPMENT FEATURES
-Used for installation of aluminum alloy windows and doors and the punching processing of aluminum profiles.
increased the production efficiency.
MAIN SPECIFICATION and TECHNICAL PARAMETER:
| Power supply | 380V/50Hz |
| Motor supply | 2.2KW |
| Rated oil pump pressure | 15MPa |
| Capability of oil box | 20L |
| Press nominal pressure | 50KN |
| Closing height | 185mm |
| Punching travel | 30mm |
| Die size | 250x200x215mm |
| Overall dimension | 1000x1200x1700mm |
| Weight | about 385kg |
