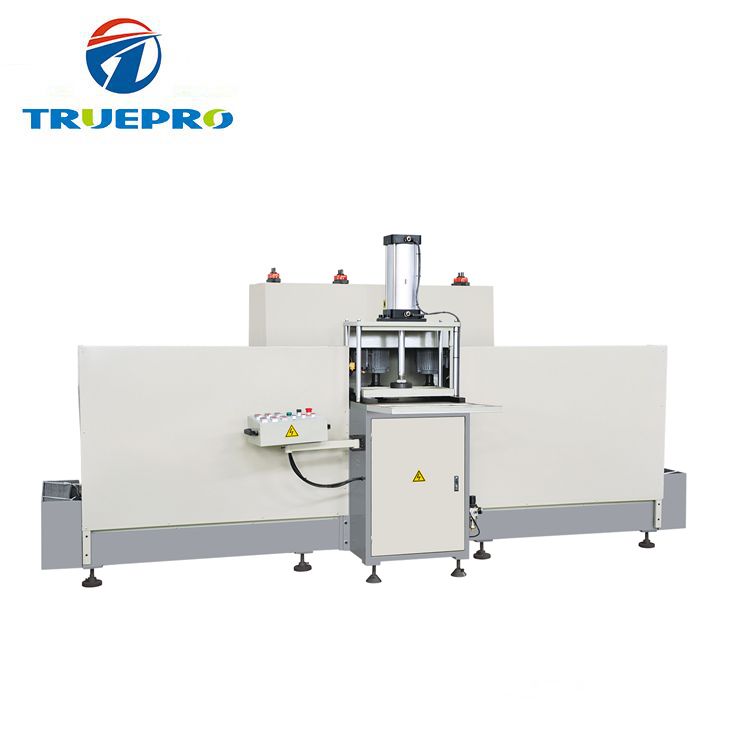

Aluminum Curtain Wall Profile Tenon Milling Machine
  • TRUEPRO
  • Shandong,China
  • 10Days
  • 1000Sets/Year

4 series of superior products,professonal services for global users:01 Intelligent processing equipment for industrial aluminum profiles.02 Intelligent processing equipment for aluminum win-door and curtain wall.03 UPVC doors and windows professional processing equipment.04 Insulating glass professional processing equipment.

Aluminum curtain wall profile tenon milling machine
one feeding can be realized milling you needed size,at the same time our company can make different thickness special blades according to customer's request,so it can satisfy different milling size.

Curtain wall milling machine installed the worm gear and worm reducer can realize the feeding stable,so can make sure the profile processing size.

Auminum Curtain Wall Profile Tenon Milling Machine



EQUIPMENT FEATURES:

-This machine have the function of fixing profile and moving blade, can

processing multiple quantity and batches for longer profile.

-Six sets blades can be combined any size according to customer need, and two

sets blades can be adjusted within 180°.

- One feeding can be realized milling your needed size, at the same time our

company can make different thickness special blades according to customer's

request, so it can satisfy different milling size.

- Installed the worm gear and worm reducer can realize the feeding stable, so can

make sure the profile processing size

MAIN SPECIFICATION and TECHNICAL PARAMETER:

Power supply380V/50Hz
Cutting motor power13.2KW(six figures)
Motor rotary speed2800r/min
Operation air pressure0.5~0.8MPa
Motor shaft diameterФ32mm
Open tenon110mm
Number of milling cutter 6pieces Ф250 milling     cutter 4pieces 14″ Saw Blade 2pieces
Feeding space of worktable1650mm
Cutter adjustmen

Horizontal direction 80mm

Longitudinal direction 280mm

Contour dimension4810×1340×1965mm
Weightabout 1600kg

PRODUCT DETAILS

2017-10-27 152310.jpg

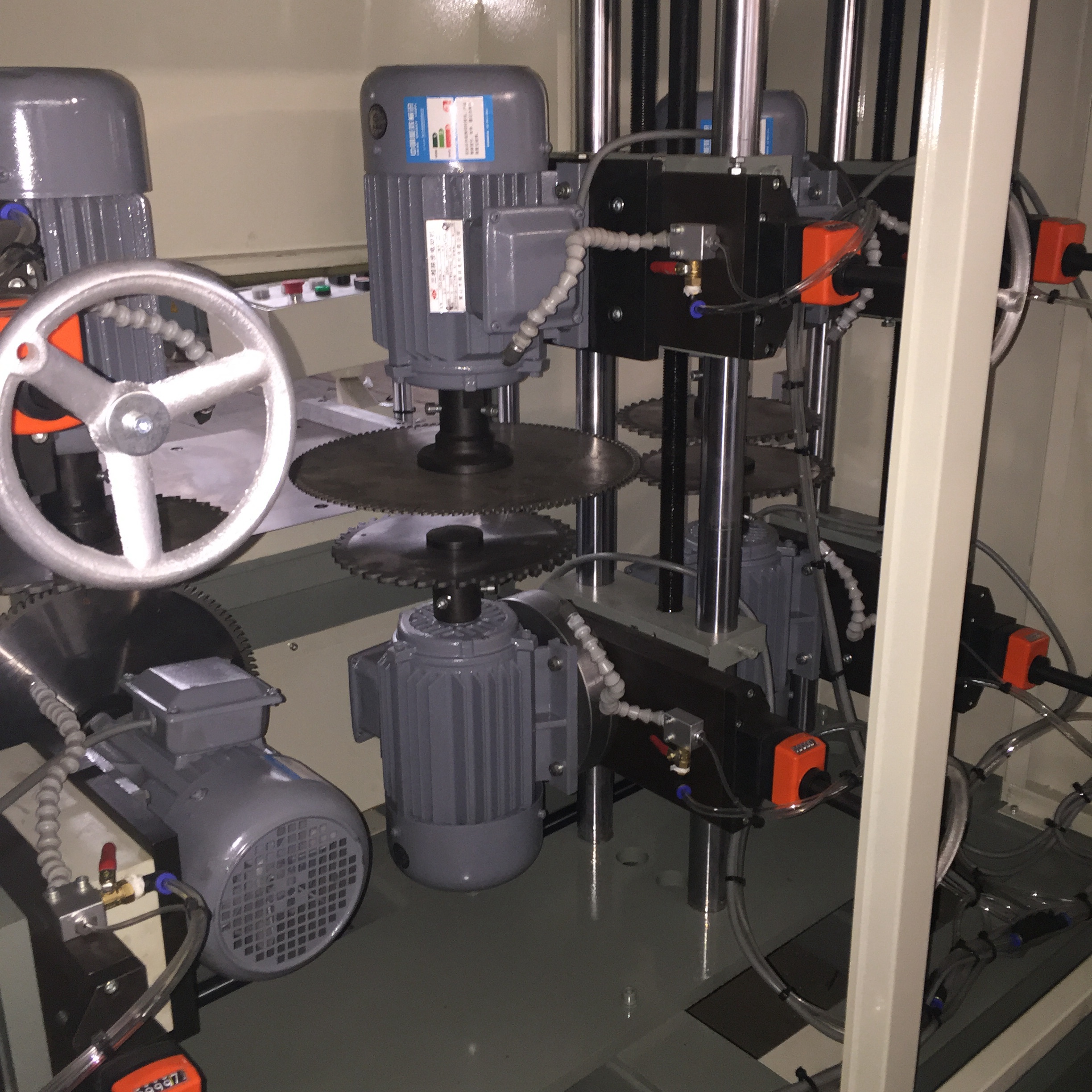

electric motor and saws

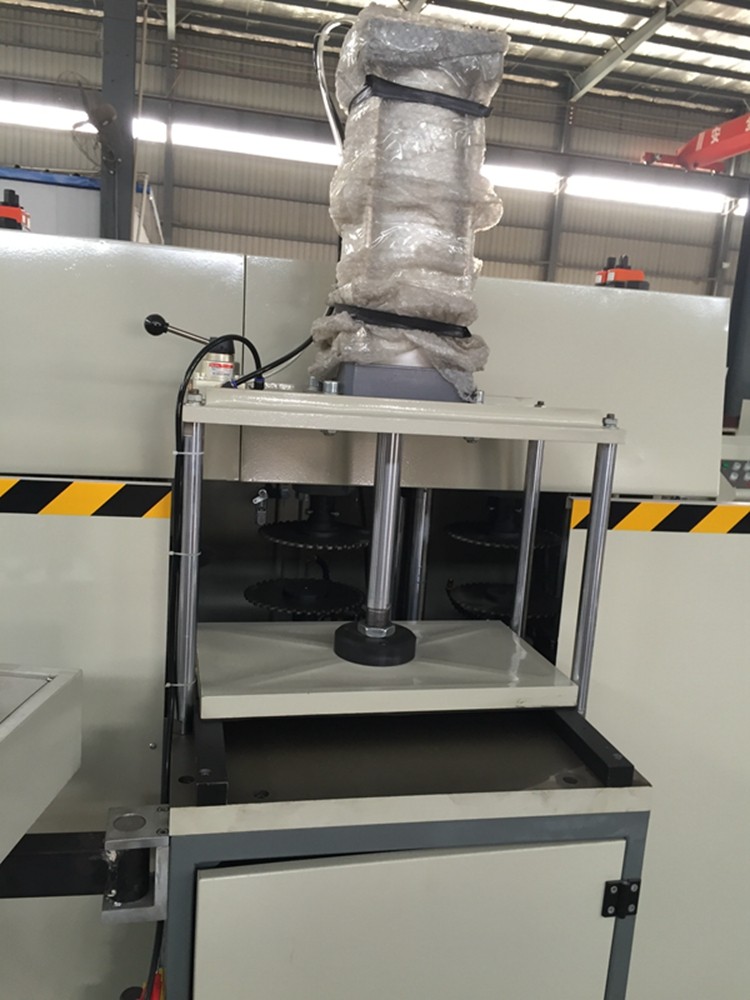

worktop

Factory Show

Factory Show
Team Service
The Production process
Delivery
OUR SERVICE
Responsibility
Social Welfare Activities
Company Style
OFFICE ENVIRONMENT
Exhibition Activities
FENESTRATION BAU CHINA 2017
FAQ
Do you provide equipment operation training?
Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport....more
