4 series of superior products,professonal services for global users:01 Intelligent processing equipment for industrial aluminum profiles.02 Intelligent processing equipment for aluminum win-door and curtain wall.03 UPVC doors and windows professional processing equipment.04 Insulating glass professional processing equipment.

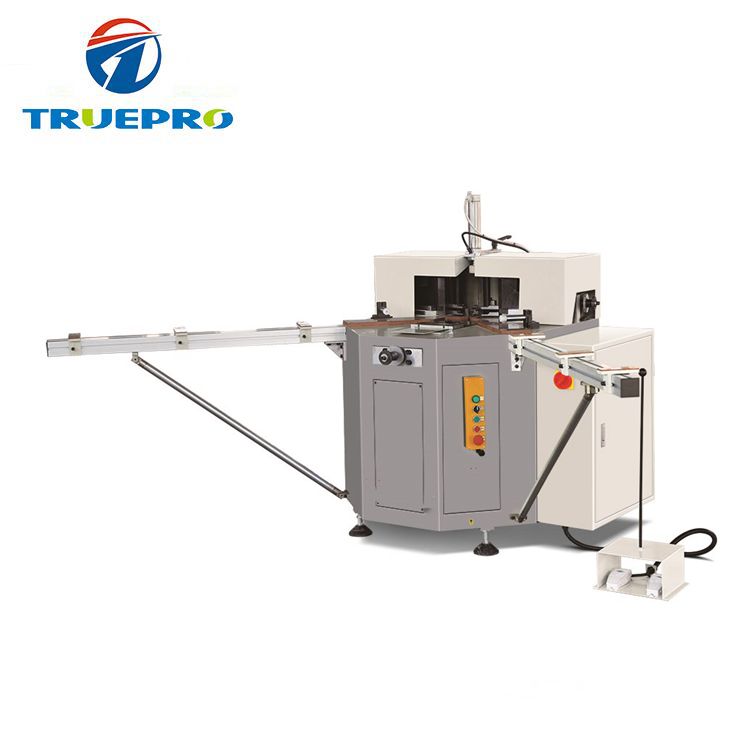

Aluminum Widnow Hydraulic Pressure Corner Crimping Machine the corner combing power is supplied by the hydraulic system, with large punching and riveting force, processing stably.
Aluminum window crimping machine the combing cutters can be adjusted up and down within a large scope, which is suitable for the high profile.
WhatsappAluminum Widnow Hydraulic Pressure Corner Crimping Machine
EQUIPMENT FEATURES:
-It is suitable for the punch rivet connection of aluminum doors & windows
punching and riveting force, processing stably.

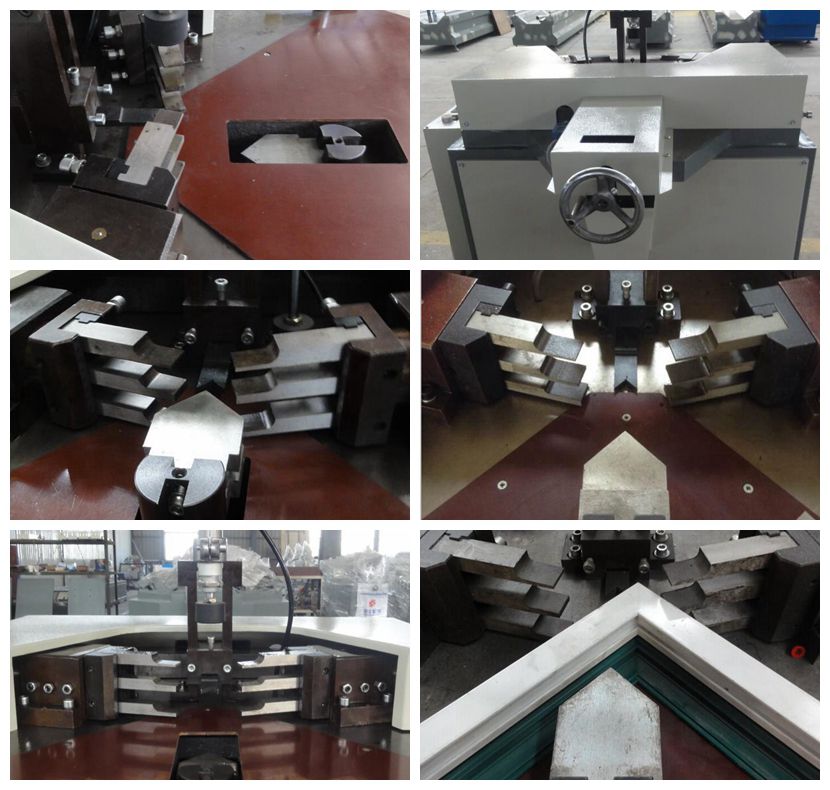

-The combining cutters can be adjusted up and down within a large scope,
-It is easy to take and put the profile with the freely lifting internal positioning.
-It can be configured with double-edge combining cutters ,which strengthens
the corner combination.
-PLC control, stable and reliable.
TECHNICAL PARAMETER
| Power supply | 380V/50Hz |
| Rating power | 4.0kW |
| Motor rotational speed | 1400r/min |
| Rated oil pump pressure | 20MPa |
| Air consumption pressure | 0.6~0.8MPa |
| General pressure of corner combining | 80KN |
| Capability of oil box | 40L |
| Corner crimping casing movement journey | 0~50mm |
| Profile processing width | 170mm |
| Contour dimension | 2000×1900×1300mm |
| Weight | about 750kg |

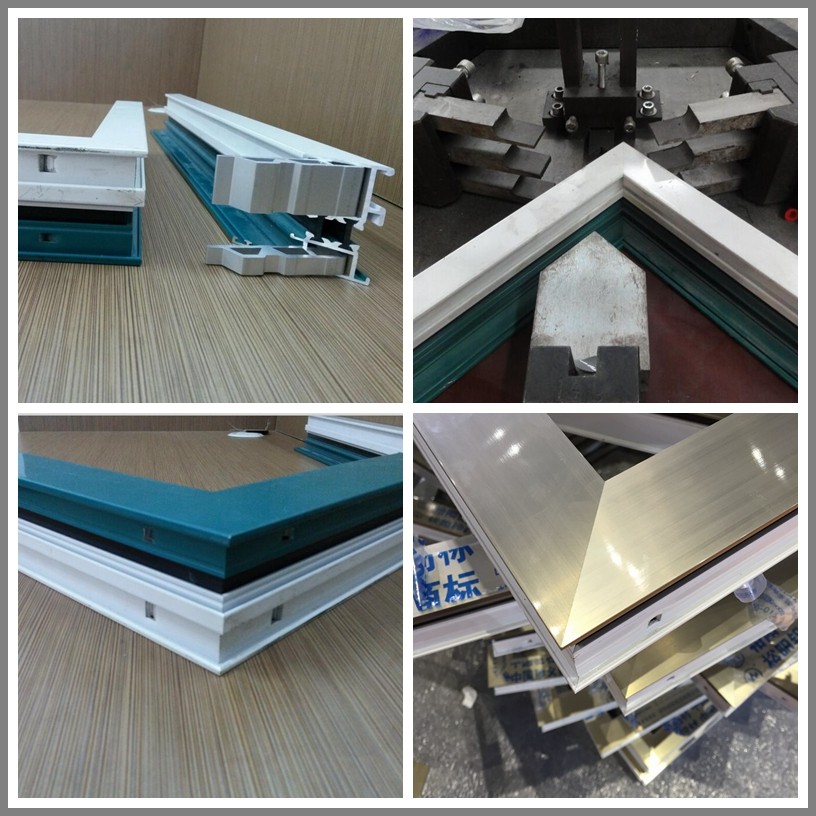

SAMPLES
Factory Show
Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport....more
